Intake Side

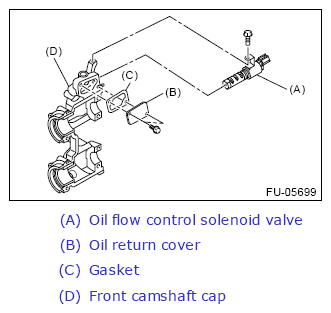

  1. Remove the two mounting bolts securing oil return cover, and remove the oil return cover and gasket.
  2. Remove the bolt securing oil flow control solenoid valve, and remove the oil flow control solenoid valve.
G13257449Courtesy of SUBARU OF AMERICA, INC.
