Throttle Sensor Inspection (Method With Circuit Tester)
- Remove the glove box. Refer to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
- Start and warm up the engine.

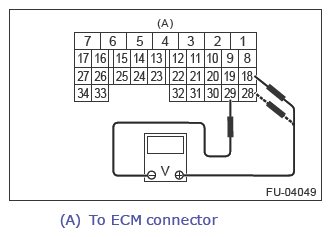

- Measure the voltage between ECM connector terminals at idling.
Throttle sensor Accelerator pedal Terminal No. Standard Main Not depressed (full closed) 18 (+) and 29 (-) Approx. 0.6 V Depressed (full opened) Approx. 4.0 V Sub Not depressed (full closed) 28 (+) and 29 (-) Approx. 1.48 V Depressed (full opened) Approx. 4.17 V - After inspection, install the related parts in the reverse order of removal.
