Engine Control Module (ECM): Installation

Install in the reverse order of removal.

CAUTION: When the ECM of model with immobilizer has been replaced, be sure to perform the registration of immobilizer system.

For model without keyless access with push button start, refer to the Type B in "REGISTRATION MANUAL FOR IMMOBILIZER".
For model with keyless access with push button start, refer to the Type D in "REGISTRATION MANUAL FOR IMMOBILIZER".

NOTE:

When replacing the ECM, be careful not to use the ECM of wrong specification to avoid any damage on the fuel injection system.

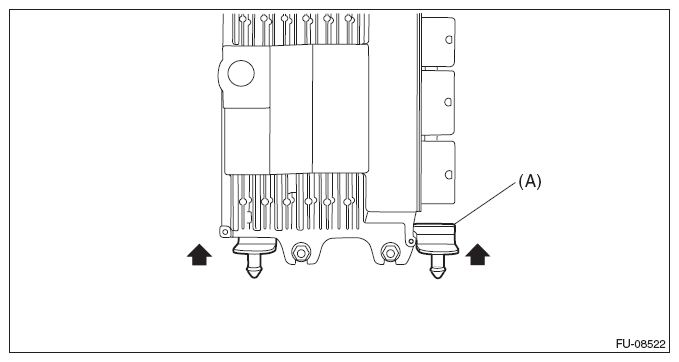

When installing the bracket (A) to the ECM, press to install it in the direction of the arrow.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

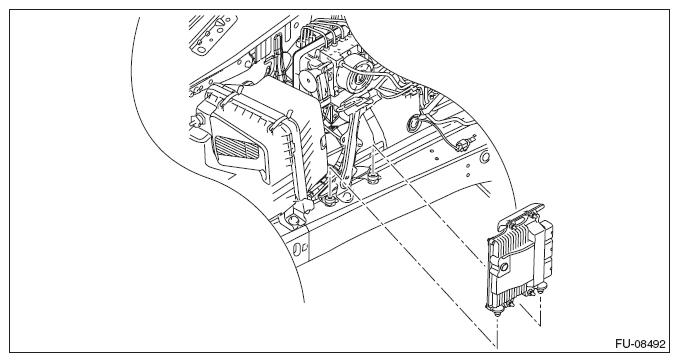

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
