Battery Sensor

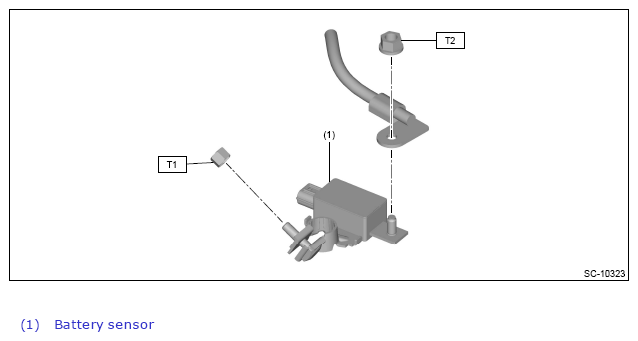

Fig 1: Battery Sensor Components Location (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 7.5 (0.8, 5.5)
