Components With Torque Specifications: Starter

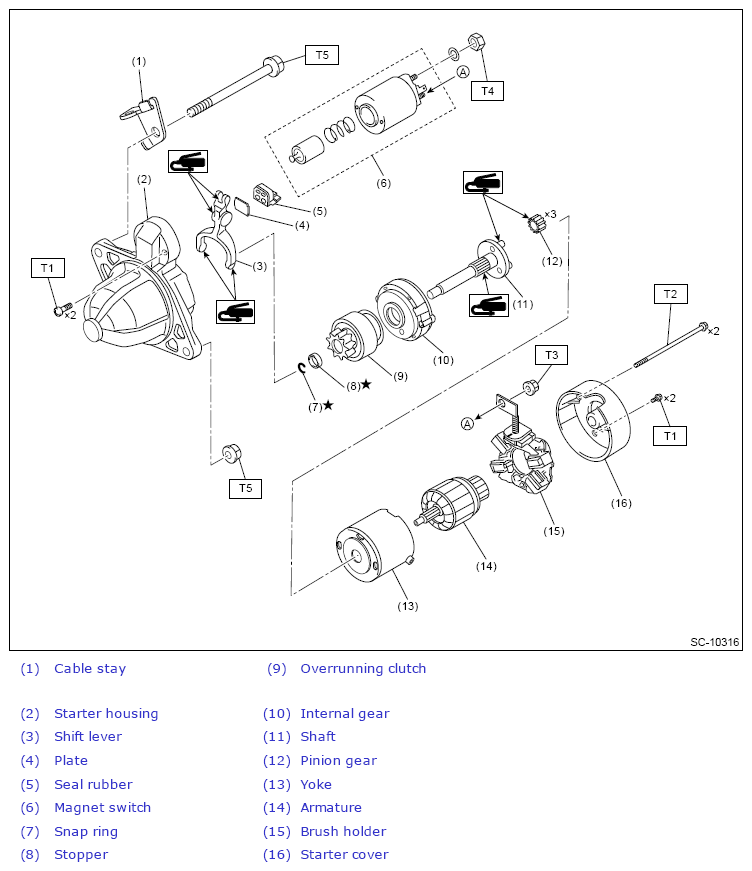

Fig 1: Starter Components Location (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 3.5 (0.4, 2.6)

T3: 10.7 (1.1, 7.9)

T4: 11 (1.1, 8.1)

T5: 50 (5.1, 36.9)
