Rubber Bushing Arm Front
- Before assembly, inspect the following items and replace any faulty part with a new one.
- Check the arm assembly front for damage or cracks, and replace if defective.
- Visually check the bushing for abnormal cracks, fatigue or damage.
- Visually check the boot on the ball joint COMPL for damage.
- Match the alignment marks on the gap of bushing intermediate plate for the rubber bushing arm front and on the arm COMPL front.

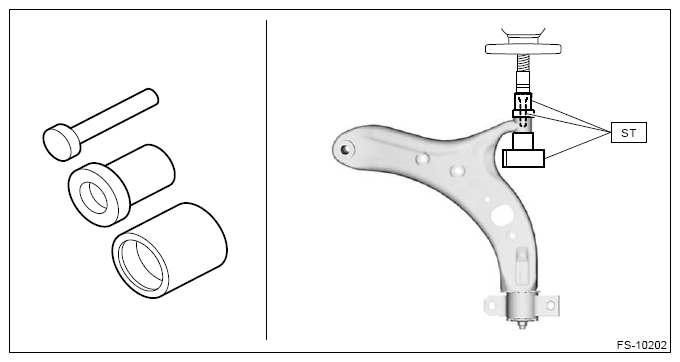

- Using the ST and a press, install the rubber bushing arm front.
Preparation tool:
ST: INSTALLER & REMOVER SET (927680000)
