Converter Case Cover: Disassembly

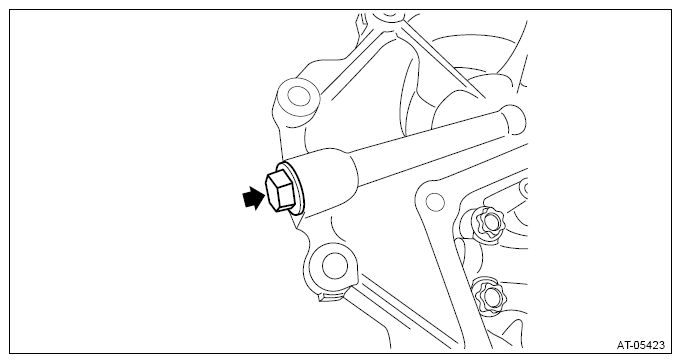

  1. Remove the plug and O-ring.
G13200355Courtesy of SUBARU OF AMERICA, INC.
