Forward Clutch Assembly: Disassembly

  1. Remove the internal gear assembly.
    G10276213Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the snap ring.
    G10276214Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the thrust gear plate.
    G10276215Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the thrust needle bearing.
    G10276216Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the snap ring.
    G10276217Courtesy of SUBARU OF AMERICA, INC.

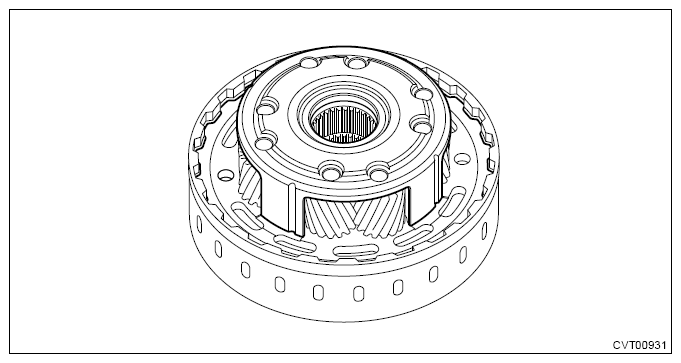

  6. Remove the planetary carrier assembly.
    G13200185Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the thrust needle bearing.
    G10276219Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the sun gear.
    G10276220Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the forward clutch hub.
    G10276221Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the washer.
    G13200189Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the thrust needle bearing.
    G13200190Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the retaining plate, drive plate, driven plate and dish plate.
    G13200191Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the snap ring using the ST and press.

    Preparation tool:

    ST: COMPRESSOR SPECIAL TOOL (18762AA001)

    G13200192Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the forward clutch piston retainer.
    G13200193Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the return spring.
    G13200194Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the forward clutch piston by blowing compressed air from end of forward clutch drum.
G13200195Courtesy of SUBARU OF AMERICA, INC.
