Front Differential: Installation

  1. Install the front differential to the converter case.
    NOTE: Be careful not to damage the inside of the case (especially the mating surface of the differential side retainers).

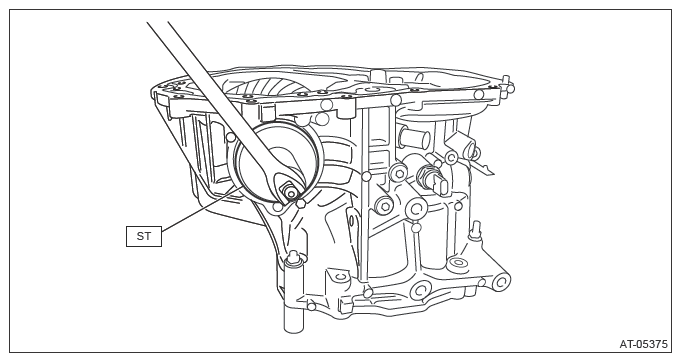

  2. Temporarily install the differential side retainers using the ST.

    Preparation tool:

    ST: WRENCH COMPL RETAINER (18658AA020)

    G13200310Courtesy of SUBARU OF AMERICA, INC.
  3. Adjust the backlash of the front differential. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FRONT DIFFERENTIAL>ADJUSTMENT .
  4. Inspect and adjust the tooth contact. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION SHAFT ASSEMBLY>ADJUSTMENT .
  5. Remove the differential side retainers and install new O-rings and oil seals. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FRONT DIFFERENTIAL>ASSEMBLY>DIFFERENTIAL SIDE RETAINER .
    NOTE: Record how many turns were needed to remove.
  6. Install the differential side retainers using ST (WRENCH COMPL RETAINER).
    NOTE: When attaching, turn the differential side retainer by the same number of turns it took to remove, and align the marks.

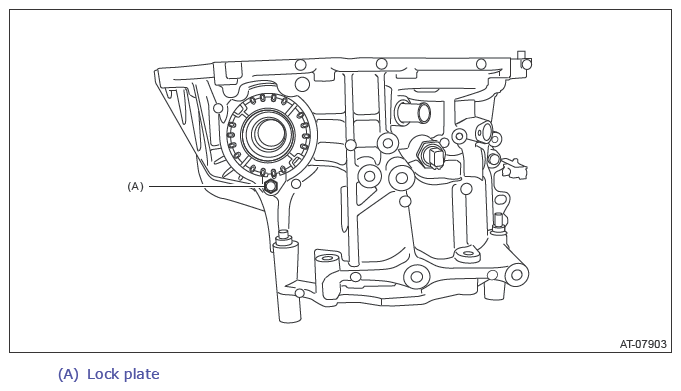

  7. Install the lock plate.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G13200311Courtesy of SUBARU OF AMERICA, INC.
  8. Install the oil baffle.
  9. Install the drive pinion. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION SHAFT ASSEMBLY>INSTALLATION .
  10. Install the primary pulley, secondary pulley and variator chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PRIMARY PULLEY AND SECONDARY PULLEY>INSTALLATION .
  11. Install the transmission case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION CASE>INSTALLATION .
  12. Install the forward clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FORWARD CLUTCH ASSEMBLY>INSTALLATION .
  13. Install the intermediate case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>INTERMEDIATE CASE>INSTALLATION .
  14. Install the transfer reduction driven gear assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER REDUCTION DRIVEN GEAR>INSTALLATION .
  15. Install the transfer clutch assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>INSTALLATION .
  16. Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
  17. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
  18. Install the transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION HARNESS>INSTALLATION .
  19. Install the control valve body and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>INSTALLATION .
  20. Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AIR BREATHER HOSE>INSTALLATION .
  21. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>INSTALLATION .
