Inhibitor Switch: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

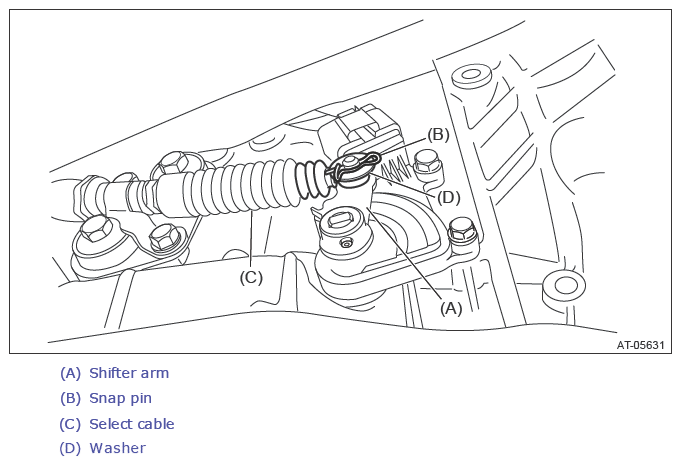

  3. Remove the snap pin and washer, and disconnect the select cable.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G13200029Courtesy of SUBARU OF AMERICA, INC.

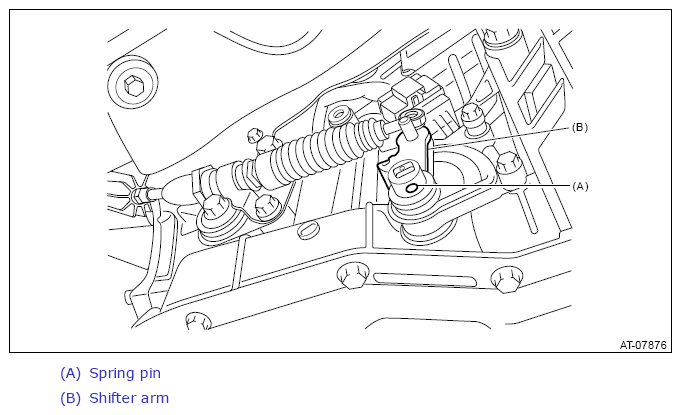

  4. Remove the spring pin and shifter arm.
    G13200030Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the inhibitor harness connector from inhibitor switch.

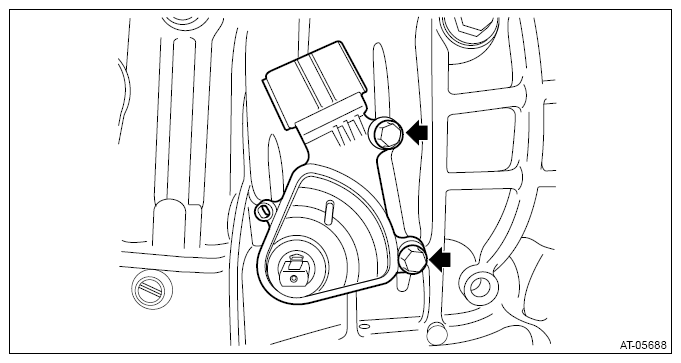

  6. Remove the two inhibitor switch securing bolts.
    G13200031Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the inhibitor switch.
