Preparation for Overhaul: Procedure

Clean the transmission exterior.
Remove the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER ASSEMBLY>REMOVAL .

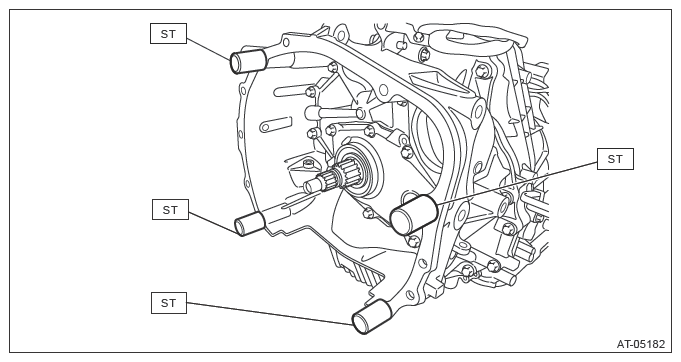

Set the ST to the transmission.
Preparation tool:

ST: STAND ASSY (18632AA000)

Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover.
NOTE: Perform installation using the following tightening torque.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Place the transmission assembly on end.

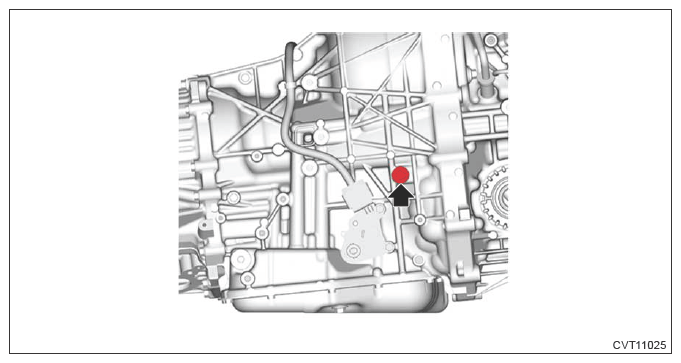

When completely overhauling the transmission, refill approx. 10 L (2.6 US qt, 8.8 Imp qt) of CVTF through the transmission right side plug. Finally, install the transmission case cover.
CAUTION: Always use specified CVTF. Using other fluid will cause malfunction. Ref. to RECOMMENDED MATERIALS>GREASE>CVTF .
Using a new gasket, install the plug.
Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
