Secondary Speed Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of secondary speed sensor, replace it with a new part.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .

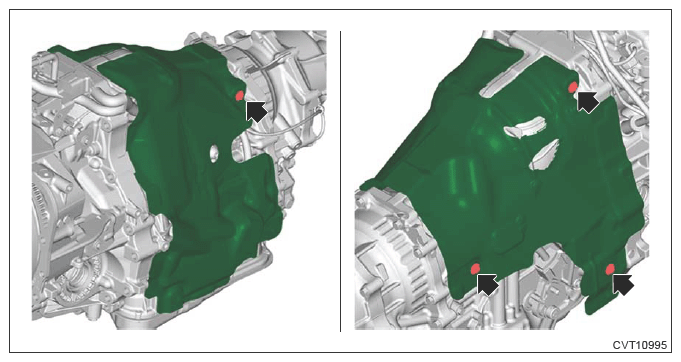

  2. Remove the transmission case cover No. 1.
    G13200037Courtesy of SUBARU OF AMERICA, INC.

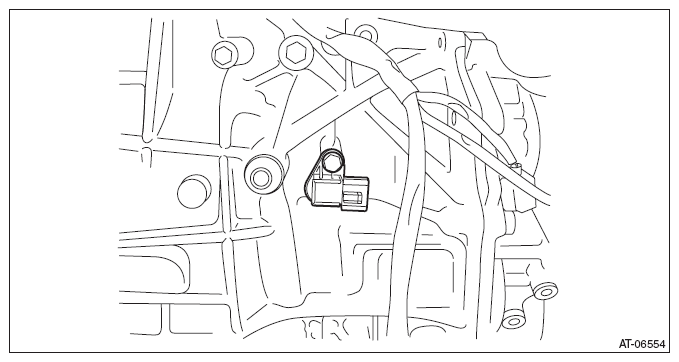

  3. Disconnect the secondary speed sensor harness connector.
  4. Remove the secondary speed sensor.
CAUTION: After removing the sensors, plug the holes to avoid foreign materials intruding as necessary.
G09482003Courtesy of SUBARU OF AMERICA, INC.
