Transfer Clutch: Installation

  1. Using a new seal ring, attach it to the seal ring groove of transfer clutch assembly.
    CAUTION:
    • Before installing seal rings, apply sufficient amount of CVTF to avoid damage and deformation.
    • Use SUBARU genuine CVTF.
    • Be careful not to incorrectly install or fail to install seal rings and other such parts.
    • When installing the seal rings, do not expand the seal rings too much.
  2. Install the transfer clutch assembly.
  3. Select the thrust needle bearing. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>ADJUSTMENT .

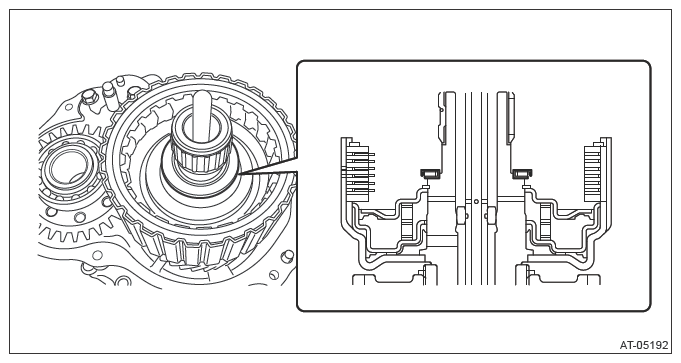

  4. Install the selected thrust needle bearing and needle bearing to transfer clutch assembly.
    NOTE: Install the thrust needle bearing in the correct direction.
    G13200134Courtesy of SUBARU OF AMERICA, INC.
  5. Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
  6. Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION .
  7. Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>INSTALLATION .
