Transfer Reduction Driven Gear: Assembly

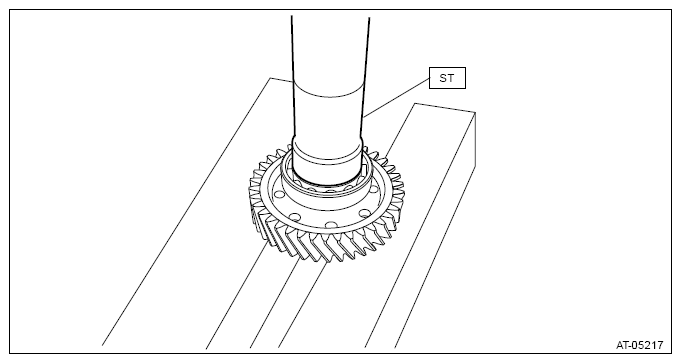

Install the new ball bearing (large) to reduction driven gear using the ST.
CAUTION:
- Before press-fitting the ball bearing, apply CVTF to press-fitting surface.
- Use SUBARU genuine CVTF.
NOTE: Install to the splines inside transfer reduction driven gear shaft.

Preparation tool:

ST: BUSHING 1-2 INSTALLER (499277100)

Courtesy of SUBARU OF AMERICA, INC.
Install the new ball bearing (small) to reduction driven gear using the ST.
CAUTION:
- Before press-fitting the ball bearing, apply CVTF to press-fitting surface.
- Use SUBARU genuine CVTF.
Preparation tool:

ST: BUSHING 1-2 INSTALLER (499277100)

Courtesy of SUBARU OF AMERICA, INC.
