At Select Lever

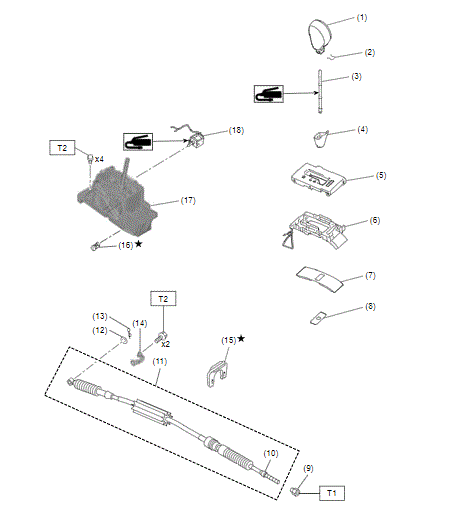

Fig 1: AT Select Lever Components Location (With Tightening Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

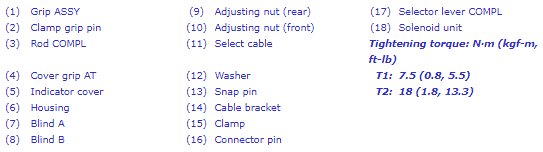

Fig 2: AT Select Lever Components Location (With Tightening Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 18 (1.8, 13.3)
