Select Lever: Removal

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Release the shift lock using a screwdriver, etc. to shift the select lever to the "N" range.

Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

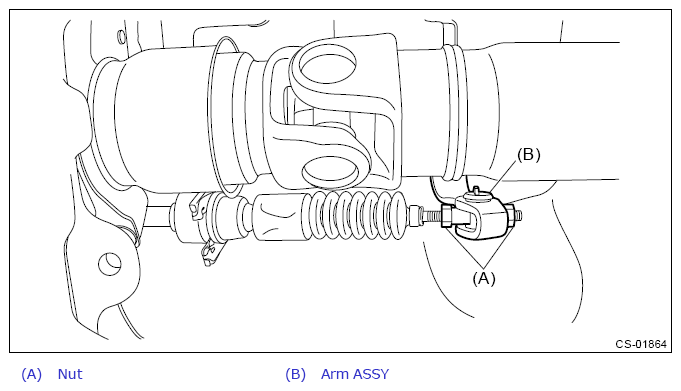

Remove the select cable from the arm assembly.
CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

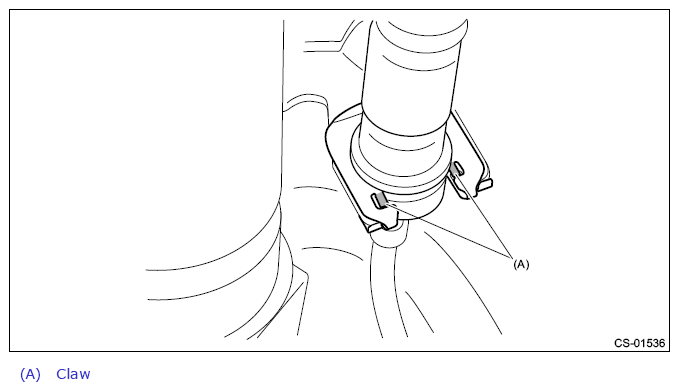

Raise the claw of clamp to remove the select cable.

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Lower the cover grip AT vertically toward the lever.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp grip pin.

Courtesy of SUBARU OF AMERICA, INC.
Remove the grip assembly.

Courtesy of SUBARU OF AMERICA, INC.
Remove the rod COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Remove the cover assembly front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
Remove the cover center side RH and the cover center side LH. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .
Disconnect the harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Remove the four bolts to remove the select lever COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clip from the select lever COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Remove the indicator cover.

Courtesy of SUBARU OF AMERICA, INC.
Remove the harness connector from the select lever COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Remove the harness from the select lever COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Remove the housing, blind A and blind B.

Courtesy of SUBARU OF AMERICA, INC.

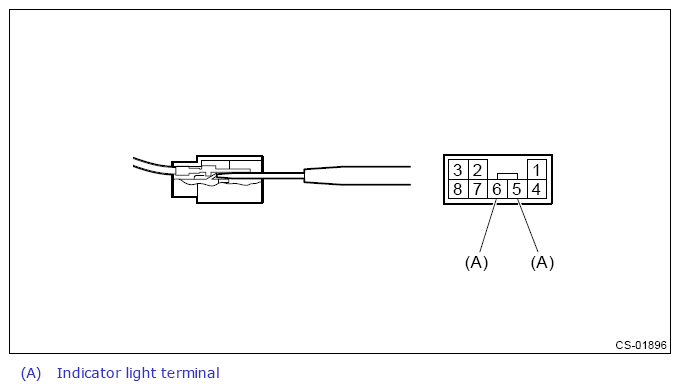

Remove the terminal of the indicator light using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Wiring color
5	Red/white
6	Blue/white
