Engine Wiring Harness

Structural diagram 1

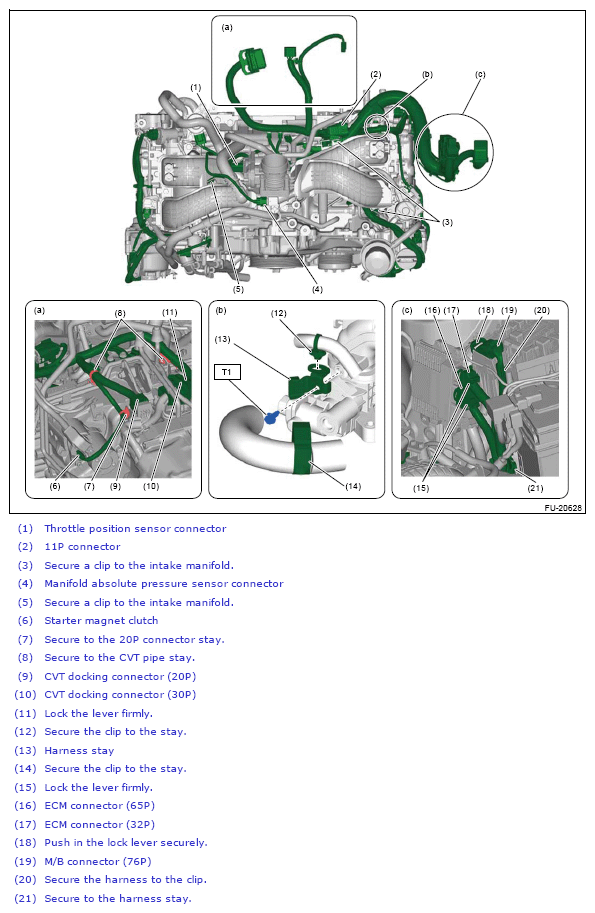

Fig 1: Engine Wiring Harness Components Location (With Torque Specification) (Structural Diagram 1)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)
Structural diagram 2

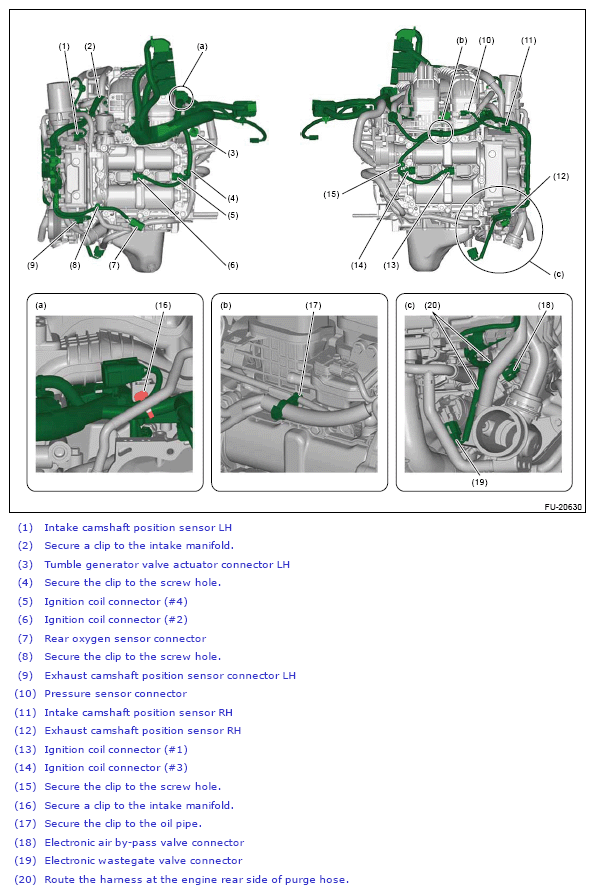

Fig 2: Engine Wiring Harness Components Location (With Torque Specification) (Structural Diagram 2) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

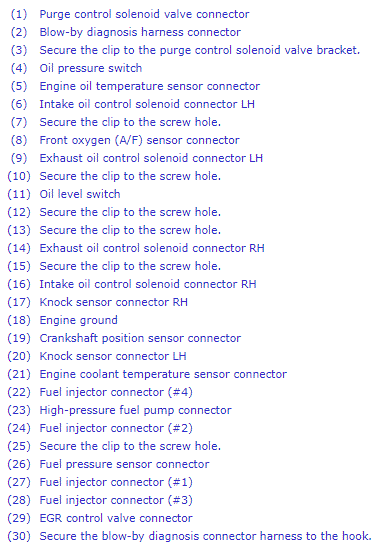

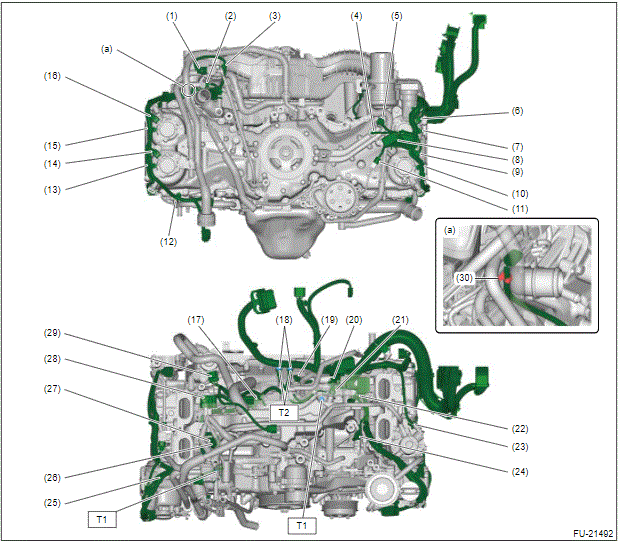

Fig 3: Engine Wiring Harness Components Location (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 19 (1.9, 14.0)
Structural diagram 3

Courtesy of SUBARU OF AMERICA, INC.
