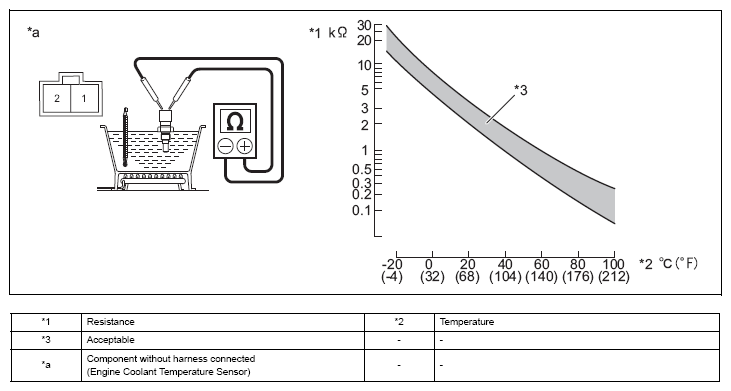

Unit Inspection
STANDARD VALUE RESISTANCE SPECIFICATION
| Inspection terminals | Inspection conditions | Standard value |
|---|---|---|
| 1 - 2 | Approx. 20°C {68°F} | 2.25 to 2.65k Ω |
| Approx. 80°C {176°F} | 0.305 to 0.331k Ω |
CAUTION:
When the inspection is performed with the sensor immersed in water, be careful not to allow the ingress of water into the terminal part. After inspection is completed, wipe off the water drops from the sensor.
