Vacuum Sensor ASSY (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of engine cover SUB-ASSY No. 1 (Refer to REMOVAL , Step 12)
  3. Removal of air pressure sensor ASSY

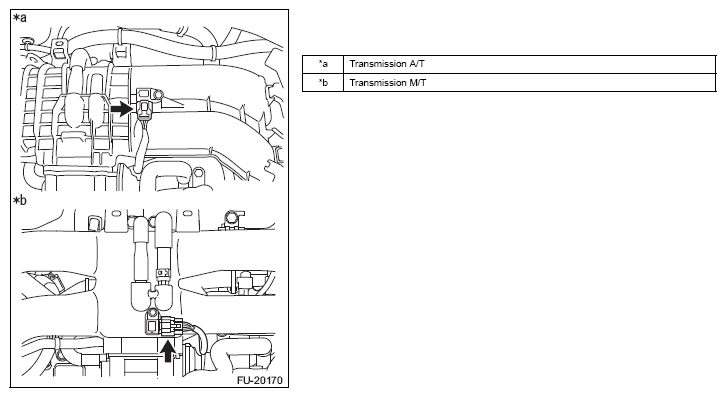

    1. Disconnect the connector for air pressure sensor ASSY.
      G12586454Courtesy of SUBARU OF AMERICA, INC.

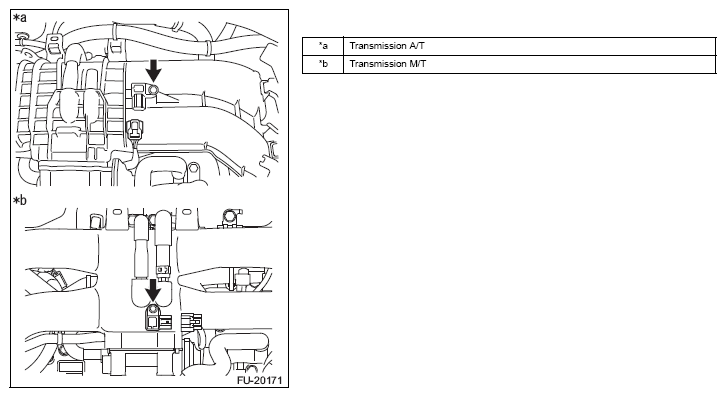

    2. Remove the bolt, and remove the air pressure sensor ASSY.
      G12586455Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the O-ring from the air pressure sensor ASSY.
      G12586456Courtesy of SUBARU OF AMERICA, INC.
