BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel Injection System
>>
Fuel System (FA20)
>>
Circuit Figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

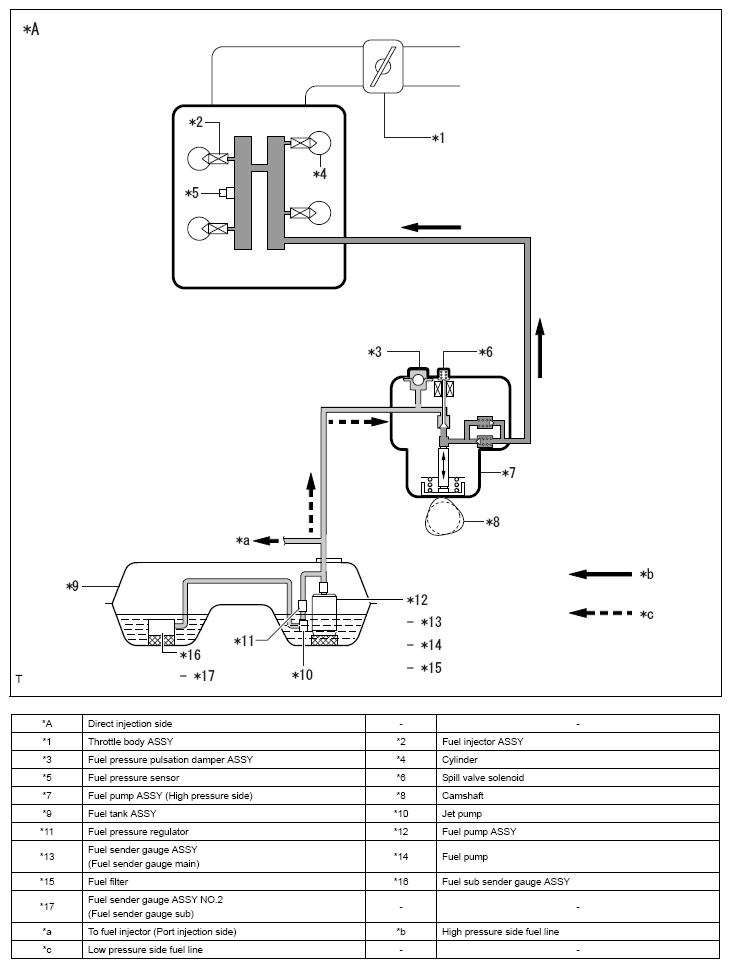

Circuit Figure

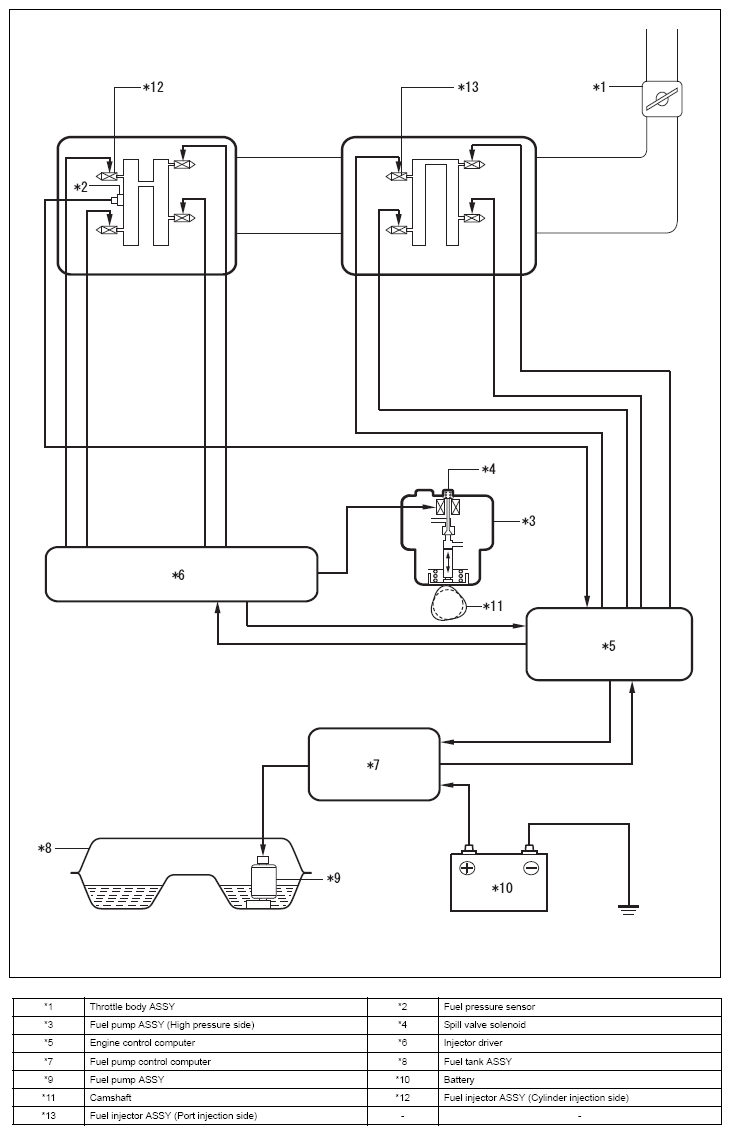

Courtesy of SUBARU OF AMERICA, INC.

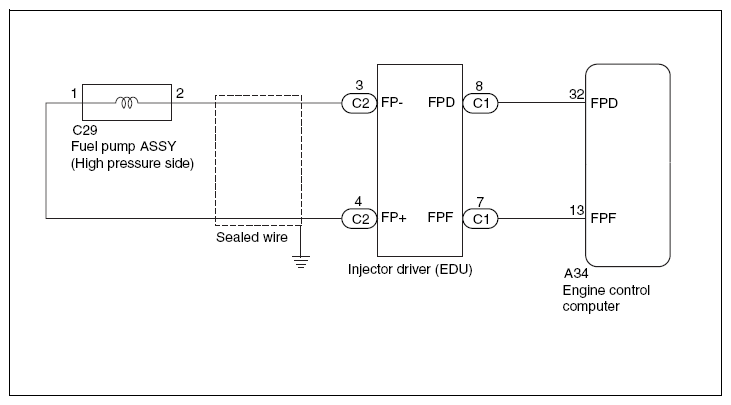

Courtesy of SUBARU OF AMERICA, INC.

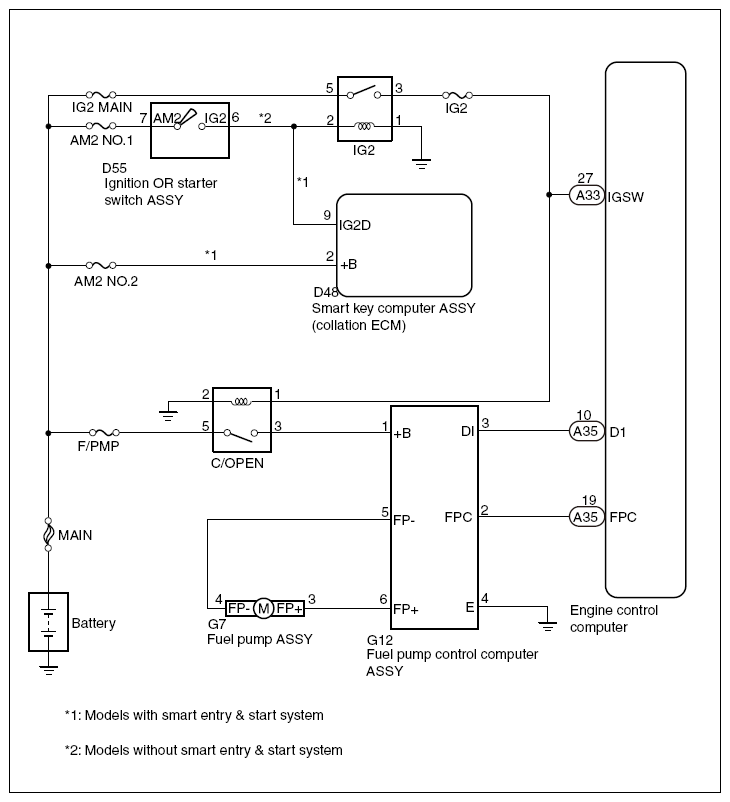

Courtesy of SUBARU OF AMERICA, INC.

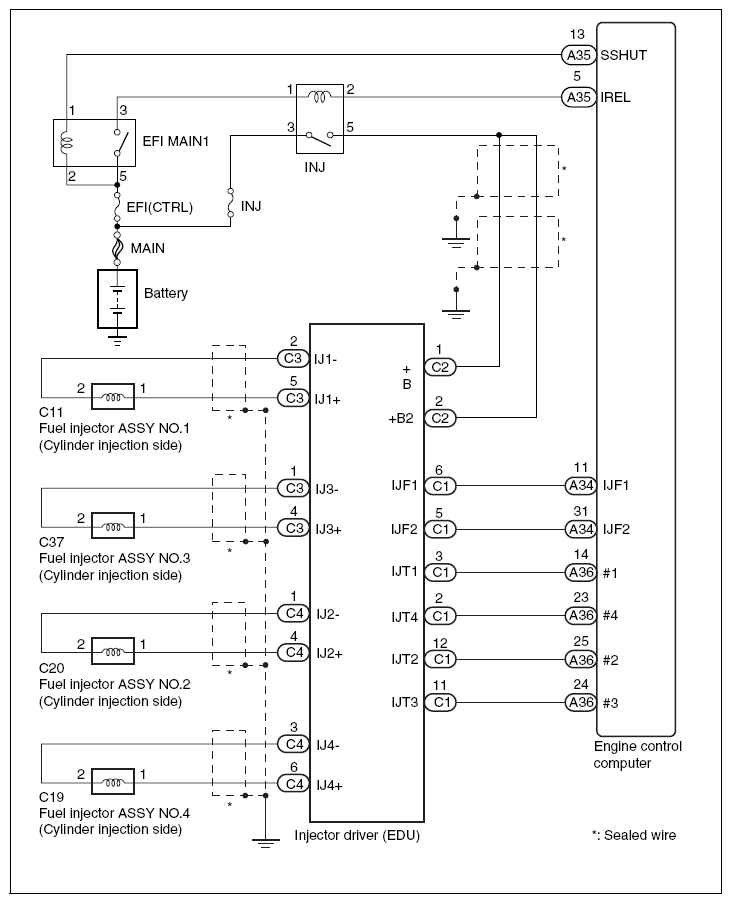

Fuel injector ASSY (Cylinder injection side)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.

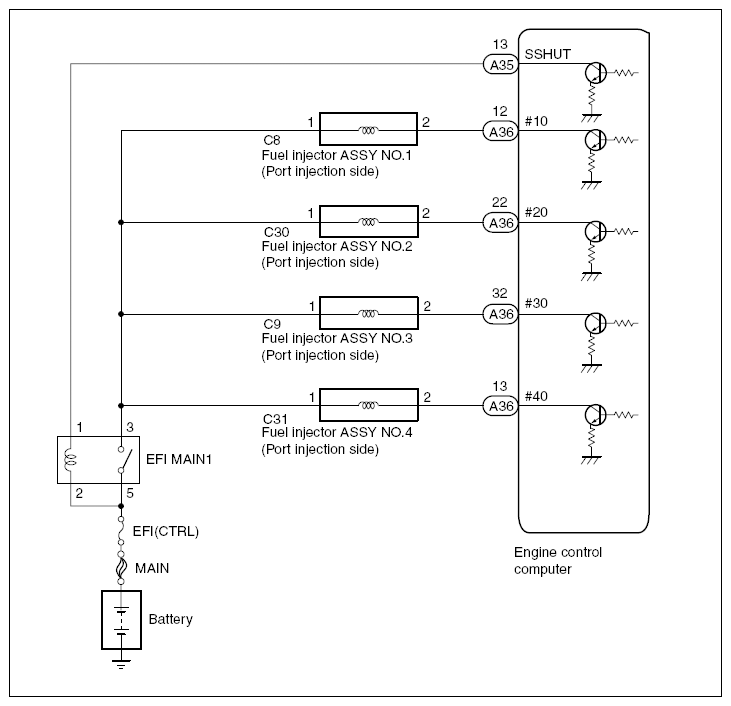

Fuel injector ASSY (Port injection side)
Courtesy of SUBARU OF AMERICA, INC.

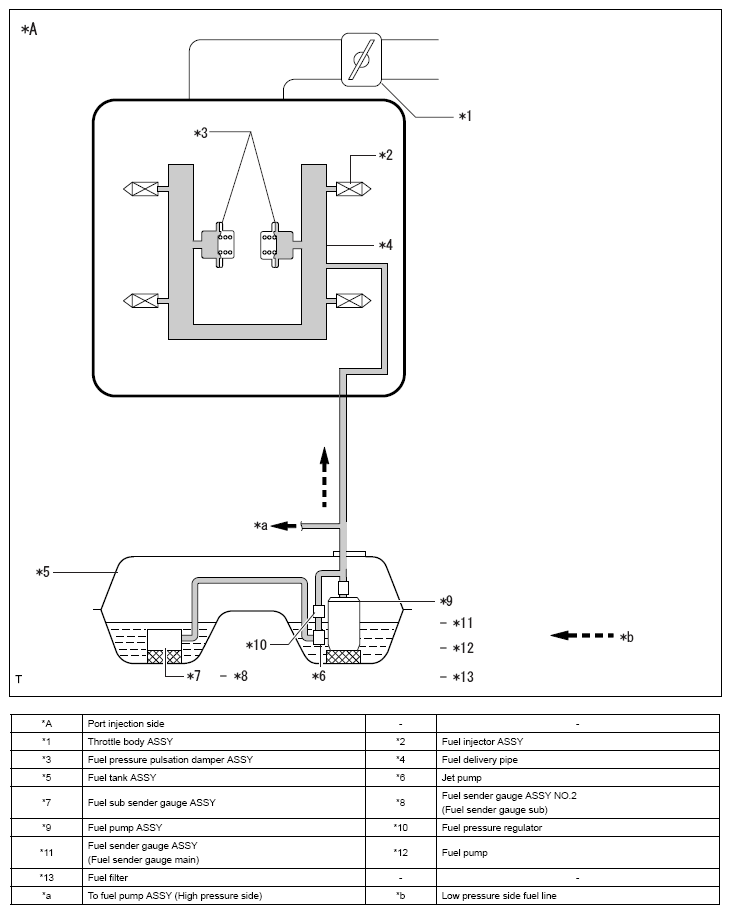

Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
