Exploded View

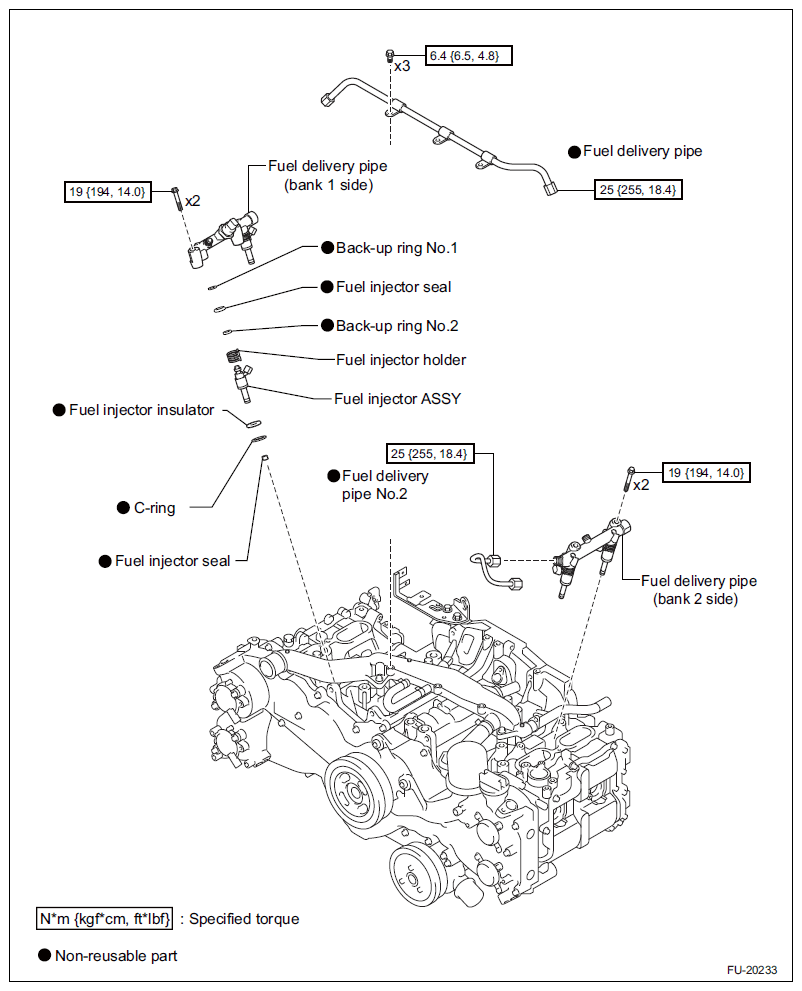

Fig 1: Injector Assembly (FA20/Direct Fuel Injection) Components With Torque Specification
G11258754Courtesy of SUBARU OF AMERICA, INC.
