Injector Driver (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
    G12586831Courtesy of SUBARU OF AMERICA, INC.
  2. Injector driver removal

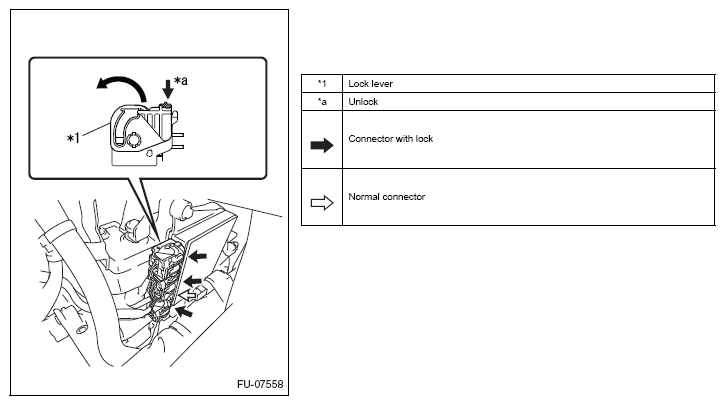

    1. Move the lock lever in the direction of arrow to unlock the three connectors.
    2. Disconnect the three connectors with lock and normal connector from the injector driver.
      G12586832Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the three bolts and remove the injector driver.
      CAUTION: Do not apply any impact to the injector driver.
