Unit Inspection
- Fuel injector ASSY checkCAUTION: This procedure must be used only when judging short circuit and open circuit. It cannot be used for judging defective operation.
- Resistance check

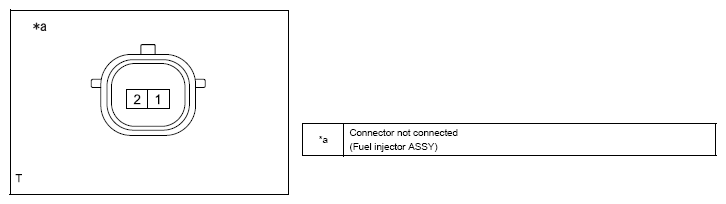

- Measure the resistance between the terminals.
- Resistance check
STANDARD VALUE RESISTANCE SPECIFICATION
| Inspection terminals | Inspection conditions | Standard value |
|---|---|---|
| 1 - 2 | 20°C {68°F} | 12 Ω |
