Engine Wiring Harness

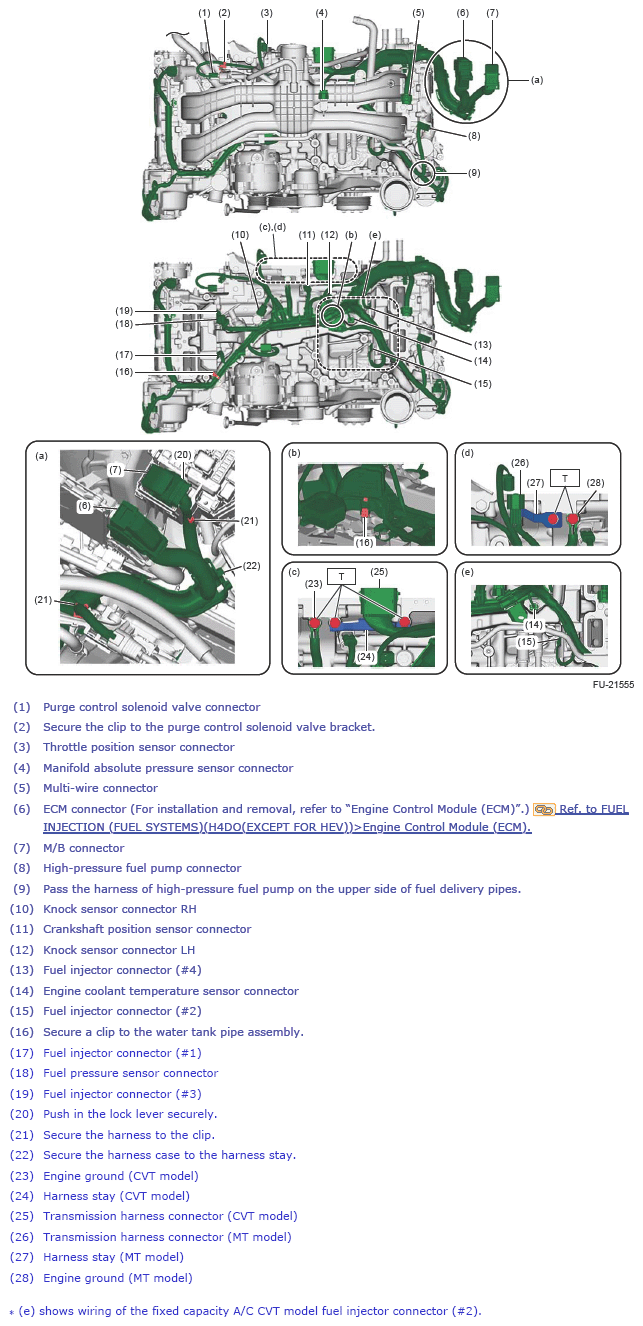

Fig 1: Engine Wiring Harness Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 19 (1.9, 14.0)

* (e) shows wiring of the fixed capacity A/C CVT model fuel injector connector (#2)  .
