Body Integrated Unit Power Supply And Ground Circuit

NOTE: For the DC power supply circuit, refer to:

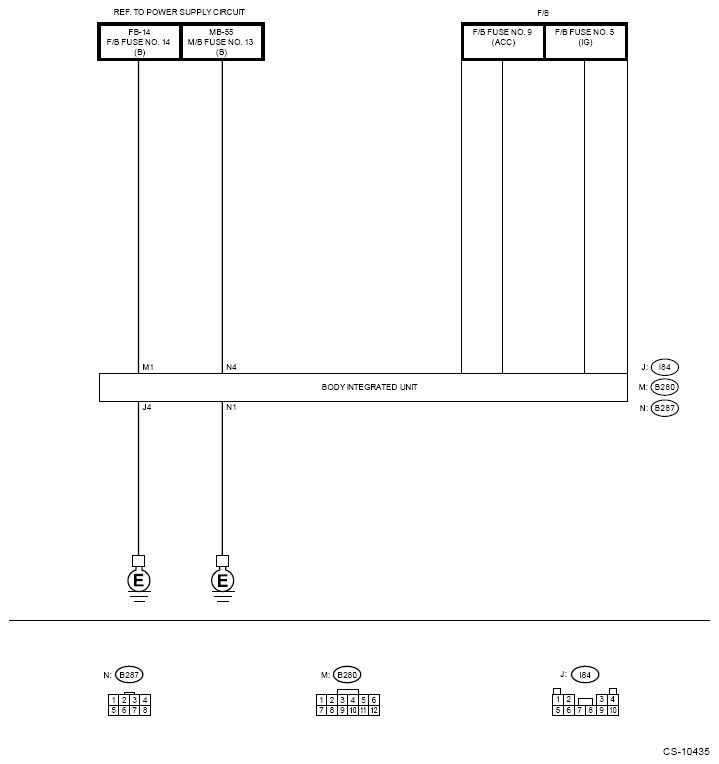

G13602834Courtesy of SUBARU OF AMERICA, INC.

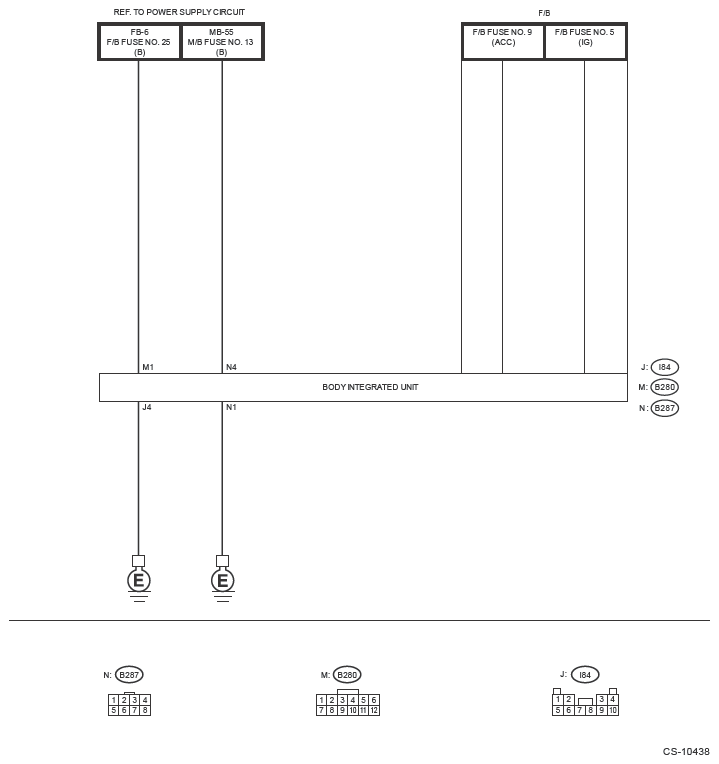

G13602835Courtesy of SUBARU OF AMERICA, INC.
  1. CHECK DTC OF BODY INTEGRATED UNIT  .

    Check DTC of body integrated unit. Refer to BODY CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC)>OPERATION .

    Is the DTC of power line displayed on body integrated unit?

    Yes  : Repair or replace it according to the DTC.

    No  : Go to  2.

  2. CHECK HARNESS BETWEEN BODY INTEGRATED UNIT AND BATTERY  .
    1. Turn the ignition switch to ON.
    2. Measure the voltage between body integrated unit and chassis ground.

    Connector & terminal

    (B280) No. 1 (+) - Chassis ground (-):

    (B287) No. 4 (+) - Chassis ground (-):

    Is the voltage 9 - 16 V?

    Yes  : Go to  3.

    No  : Check harness for open circuit between the body integrated unit and the battery or a blown fuse.

  3. CHECK BODY INTEGRATED UNIT IGN POWER SUPPLY CIRCUIT  .
    1. Turn the ignition switch to ON.
    2. Measure the voltage between F/B fuse No. 5 and chassis ground.

    Connector & terminal

    F/B fuse No. 5 (+) - Chassis ground (-):

    Is the display 10 V or more?

    Yes  : Go to  4.

    No  : Repair the open circuit of the harness between body integrated unit and ignition switch.

  4. CHECK BODY INTEGRATED UNIT AND ACC VOLTAGE SUPPLY CIRCUIT  .
    1. Turn the ignition switch to ACC.
    2. Measure the voltage between F/B fuse No. 9 and chassis ground.

    Connector & terminal

    F/B fuse No. 9 (+) - Chassis ground (-):

    Is the display 10 V or more?

    Yes  : Go to  5.

    No  : Repair the open circuit of the harness between body integrated unit and ignition switch.

  5. CHECK HARNESS BETWEEN BODY INTEGRATED UNIT AND CHASSIS GROUND  .
    1. Turn the ignition switch to OFF.
    2. Measure the harness resistance between the body integrated unit and chassis ground.

    Connector & terminal

    (i84) No. 4 - Chassis ground:

    (B287) No. 1 - Chassis ground:

    Is the resistance less than 1 Ω?

    Yes  : Go to  6.

    No  : Repair the open circuit of harness between the body integrated unit and chassis ground.

  6. CHECK FOR POOR CONTACT  .

    Is there poor contact of connector?

    Yes  : Repair the poor contact.

    No  : End.
