MT Gear Shift Lever: Assembly

NOTE:

Assembly is available only for 5MT model.
Clean all the parts before assembly.
Apply NIGTIGHT LTS No. 2 grease or equivalent to each part. Refer to CONTROL SYSTEMS>GENERAL DESCRIPTION>COMPONENT>5MT GEAR SHIFT LEVER .

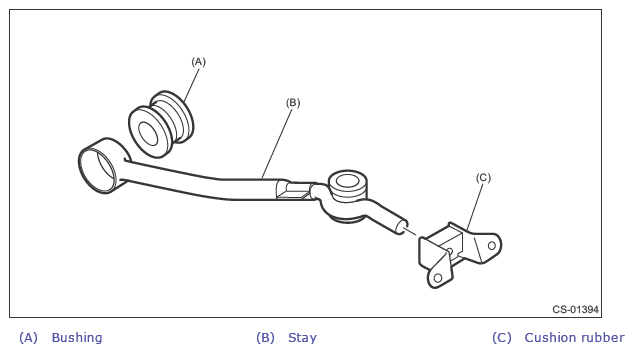

Mount the bushing and cushion rubber to the stay.

Courtesy of SUBARU OF AMERICA, INC.

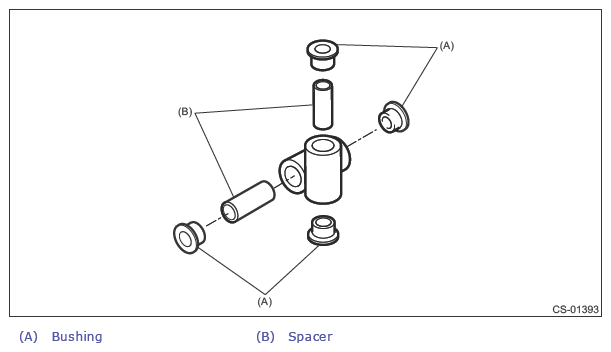

Install the bushing and spacer to boss.

Courtesy of SUBARU OF AMERICA, INC.
Install the boss to the joint.
NOTE: Use a new self-locking nut.

Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

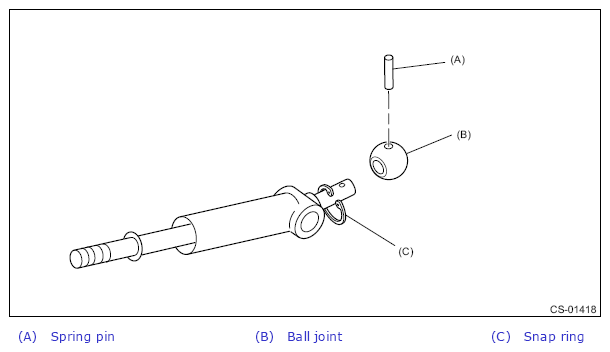

Install the snap ring to gear shift lever and install the bushing.
NOTE: Apply grease to the bushing.

Courtesy of SUBARU OF AMERICA, INC.
Apply grease to the bushing B and O-ring, and then install to gear shift lever.
Apply sufficient grease into boss, and then install the gear shift lever to the stay.

Courtesy of SUBARU OF AMERICA, INC.

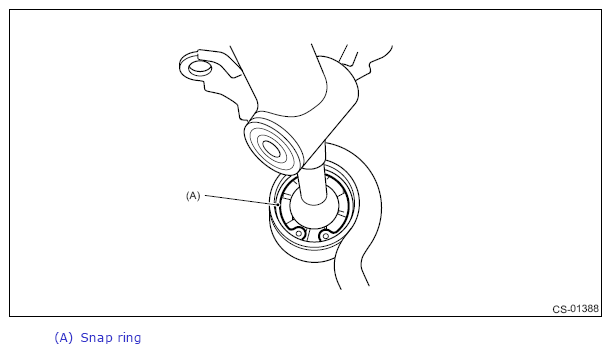

Install the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

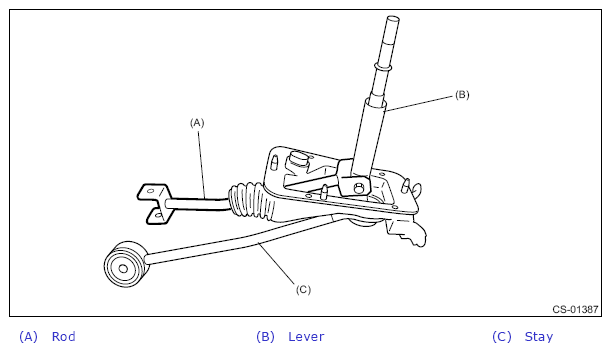

Insert the gear shift lever and rod into boot hole.
Install the rod.
NOTE: Use a new self-locking nut.

Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

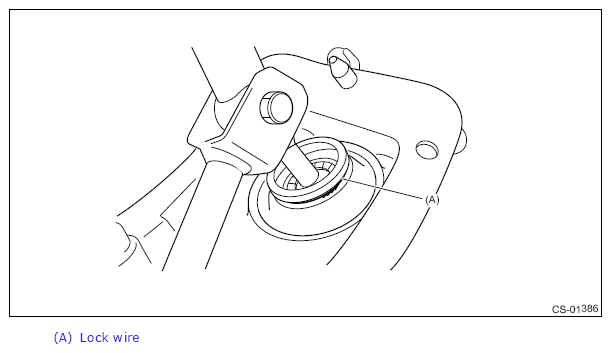

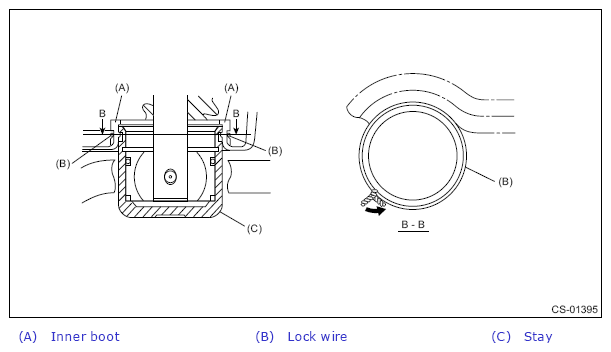

Install the lock wire.

NOTE: Use a new lock wire.

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Courtesy of SUBARU OF AMERICA, INC.
