5MT Model

  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the gear shift knob by turning it counterclockwise.
  3. Remove the front console panel. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  4. Remove the panel center LWR LH and RH. Refer to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  5. Remove the clamp.
    G08550626Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the boot and insulator assembly.
    G08550627Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the harness clamp from the plate COMPL.
    G08550628Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the plate COMPL from the vehicle body.
    G08550629Courtesy of SUBARU OF AMERICA, INC.
  9. Lift up the vehicle.
  10. Remove the center exhaust cover.
    G13230505Courtesy of SUBARU OF AMERICA, INC.

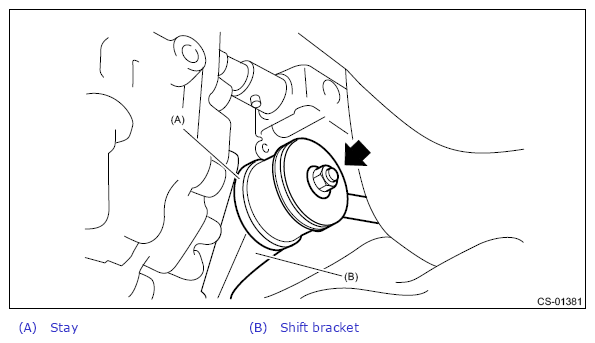

  11. Remove the stay from the shift bracket.
    G13602927Courtesy of SUBARU OF AMERICA, INC.

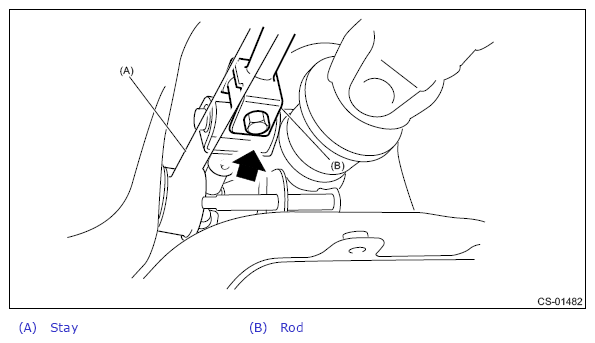

  12. Remove the rod from joint.
    G13602928Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the cushion rubber from the vehicle body.
    G13602929Courtesy of SUBARU OF AMERICA, INC.
  14. Extract the spring pin and remove the joint.
    G13602930Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the gear shift lever from the bottom of the vehicle.
