Camshaft Position Sensor

  1. Disconnect the ground terminal from battery sensor.

    Refer to REPAIR CONTENTS>NOTE>BATTERY .

  2. Prepare an oscilloscope.
  3. Disconnect the connector from ECM.

    Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE CONTROL MODULE (ECM)>REMOVAL .

  4. Attach the ST between the ECM, engine wiring harness and the bulkhead wiring harness.

    Refer to ENGINE (DIAGNOSTICS) (H4DO)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

    Special tool:

    CHECK BOARD (18460AA180)

  5. Connect the probe to ST.

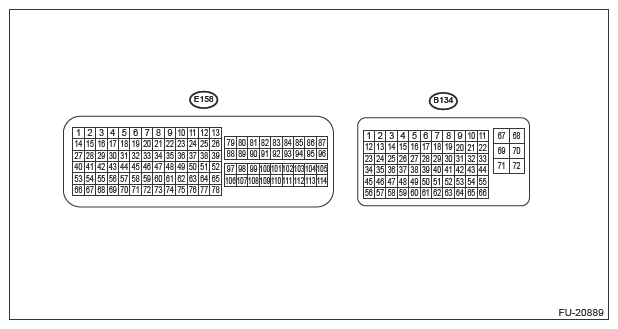

    G13223954Courtesy of SUBARU OF AMERICA, INC.
    Camshaft position sensor Terminal No. Probe
    Intake RH (E158) No. 78 +
    LH (E158) No. 77 +
    Exhaust RH (E158) No. 65 +
    LH (E158) No. 64 +
    RH and LH (B134) No. 69 -
  6. Connect the ground terminal to battery sensor.

    Refer to REPAIR CONTENTS>NOTE>BATTERY .

  7. Start the engine and let it idle.
  8. Check the waveforms and voltage.
    NOTE: For waveform and voltage, refer to:
    Refer to ENGINE (DIAGNOSTICS) (H4DO)>CONTROL MODULE I/O SIGNAL .
  9. After inspection, install the related parts in the reverse order of removal.
    NOTE: For installation procedures of ECM connectors, refer to:
    Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE CONTROL MODULE (ECM)>INSTALLATION .
