Exhaust Side

RH SIDE

Disconnect the ground terminal from battery sensor.
Refer to REPAIR CONTENTS>NOTE>BATTERY .
Lift up the vehicle.
Remove the under cover front.
Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

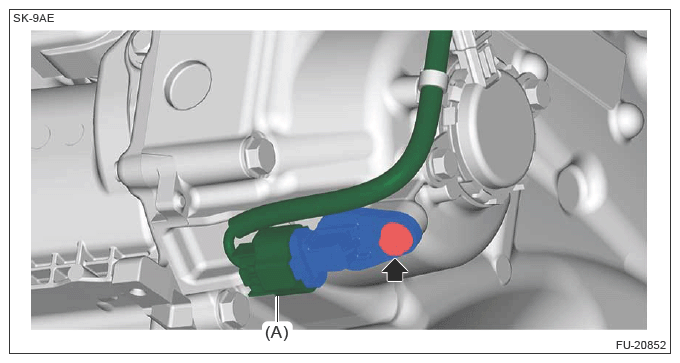

Disconnect the connector (A) and remove the camshaft position sensor.

Courtesy of SUBARU OF AMERICA, INC.

LH SIDE

Disconnect the ground terminal from battery sensor.
Refer to REPAIR CONTENTS>NOTE>BATTERY .
Lift up the vehicle.
Remove the under cover front.
Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

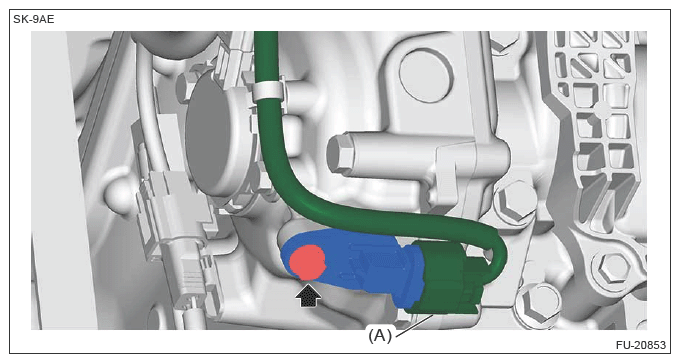

Disconnect the connector (A) and remove the camshaft position sensor.

Courtesy of SUBARU OF AMERICA, INC.
