Steering Wheel: Removal

CAUTION: Before handling the airbag system components, always refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Set the tire to the straight-ahead position.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the driver's airbag module. Refer to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL .
  4. Remove the steering wheel.
    CAUTION:
    • Always use the steering wheel puller for removal to avoid deforming the steering wheel.
    • If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.

    Preparation tool:

    Steering wheel puller

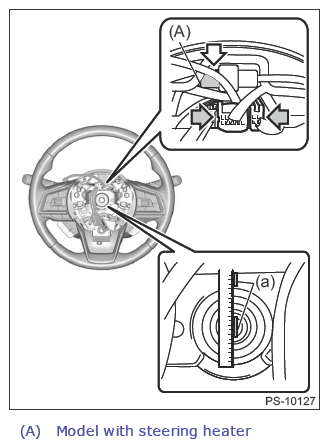

    1. Disconnect the connector and remove the nut.
    2. Put an alignment mark (a) using a ruler as shown in the figure, and remove the steering wheel.
G13592455Courtesy of SUBARU OF AMERICA, INC.
