Drive Plate: Installation

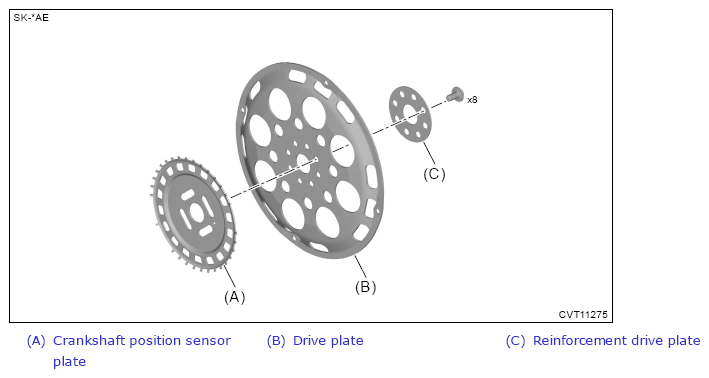

Temporarily attach the reinforcement drive plate, drive plate and crankshaft position sensor plate, and set the ST.
NOTE:
- Install with the stamped mark of the crankshaft position sensor plate facing the transmission side.
- Align the knock pin hole of the crankshaft position sensor plate to the knock pin of the crankshaft to secure the knock pin.
Courtesy of SUBARU OF AMERICA, INC.

Preparation tool:

ST: CRANKSHAFT STOPPER (498497300)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts securing the drive plate.
1. Tighten the bolts securing the drive plate.
  Tightening torque:

  30 N.m (3.1 kgf-m, 22.1 ft-lb)
2. Using an angle gauge, further tighten the bolts securing the drive plate.
  Tightening angle:

  30° - 35°

  Install the transmission body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION ASSEMBLY>INSTALLATION .
