Intake Manifold Assembly

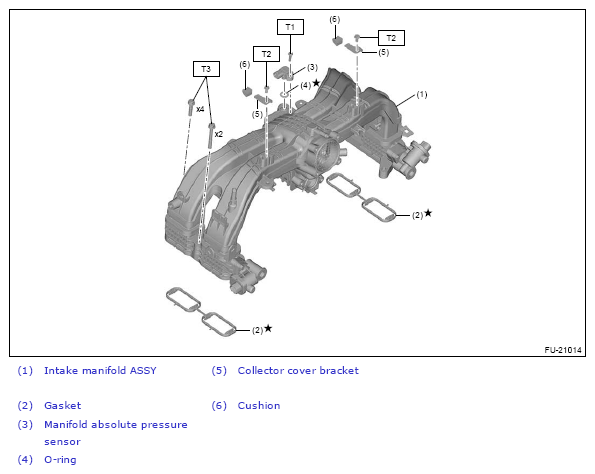

Fig 1: Intake Manifold Assembly Components Location

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 6.4 (0.7, 4.7)

T3: 25 (2.5, 18.4)
