RH Side

  1. Disconnect the ground terminal from battery sensor.

    Refer to REPAIR CONTENTS>NOTE>BATTERY .

  2. Remove the collector cover.

    Refer to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>REMOVAL .

  3. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the intake manifold assembly.

    Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>INTAKE MANIFOLD ASSEMBLY>REMOVAL .

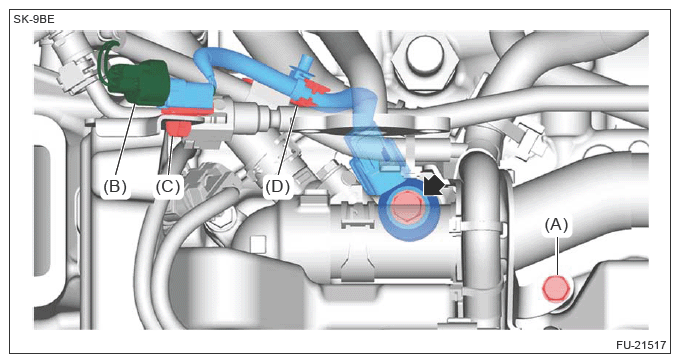

  6. Remove the bolt (A) securing the engine wiring harness.
  7. Disconnect the connector (B) and remove the clip (C).
  8. Remove the coupling harness from the clip (D).
  9. Remove the knock sensor together with the coupling harness, and disconnect the coupling harness.
    G13590295Courtesy of SUBARU OF AMERICA, INC.
