Engine Control System (Diagnostics) - Introduction
>>
Electrical Component Location
>>
Location
>>
Engine Unit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

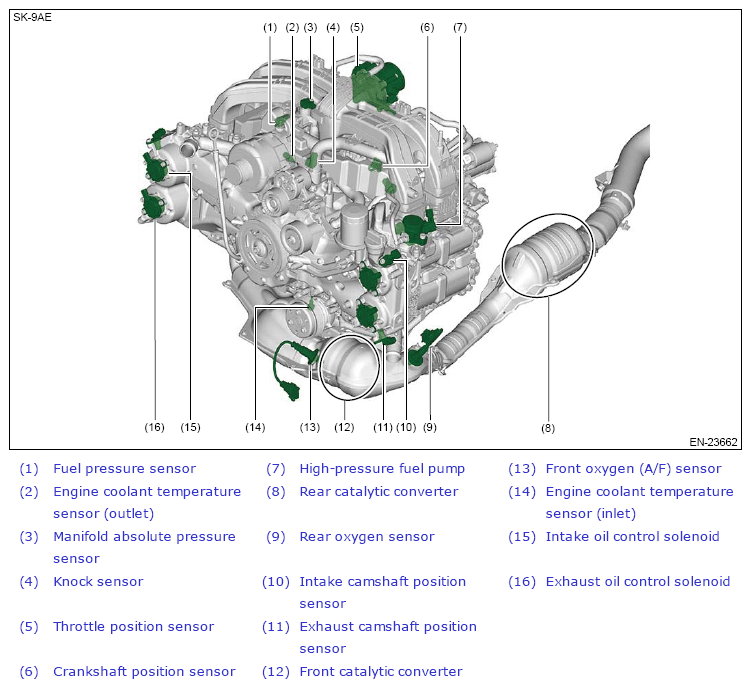

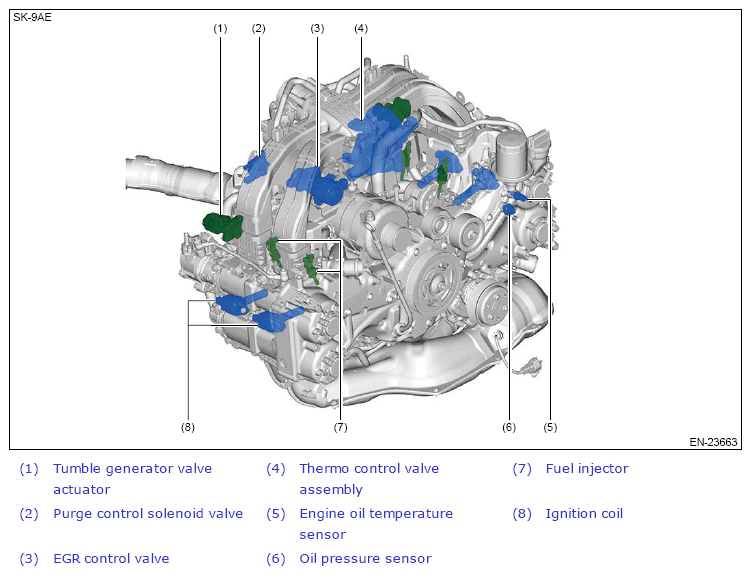

Engine Unit
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
