Oil Control Solenoid: Removal: Intake
- RH SIDE
- Disconnect the ground terminal from battery sensor.
Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air intake duct (rear).
Refer to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .

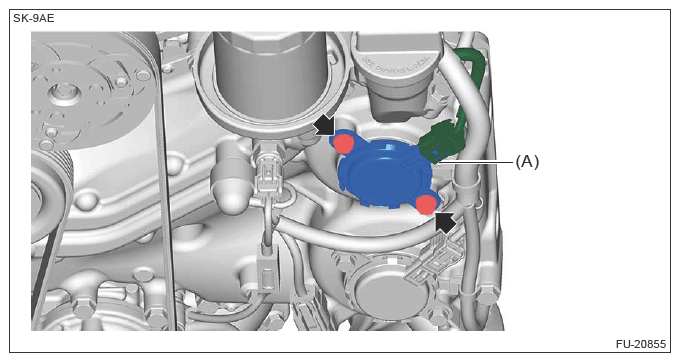

- Disconnect the connector (A) and remove the oil control solenoid.
- Remove the backup ring from the oil control solenoid.
- Disconnect the ground terminal from battery sensor.
- LH SIDE
- Disconnect the ground terminal from battery sensor.
Refer to REPAIR CONTENTS>NOTE>BATTERY .

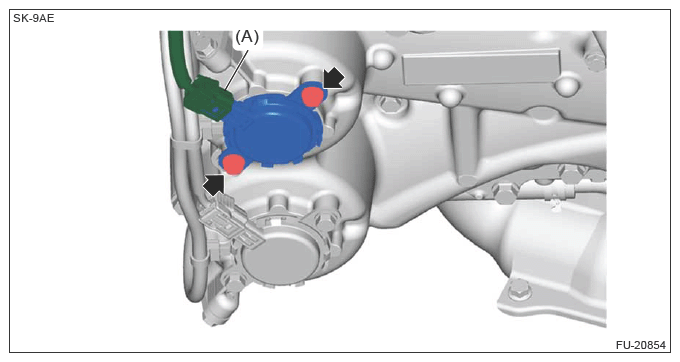

- Disconnect the connector (A) and remove the oil control solenoid.
- Remove the backup ring from the oil control solenoid.
- Disconnect the ground terminal from battery sensor.
