Fuel Tank 1

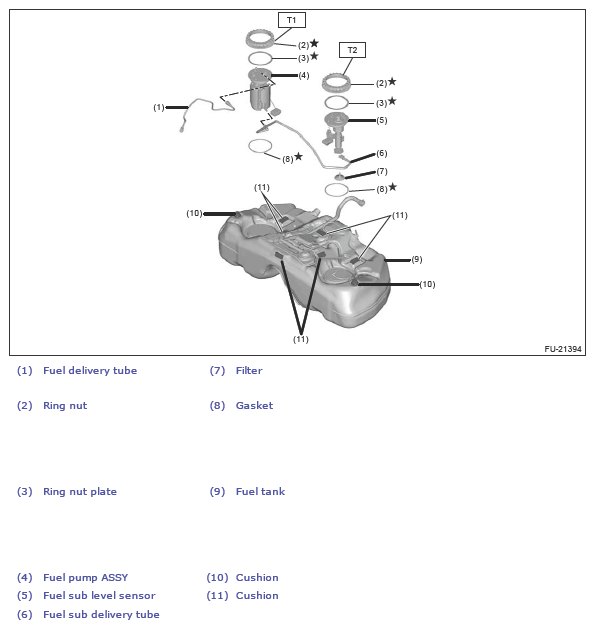

Fig 1: Fuel Tank 1 Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1:  Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Pump Assembly>INSTALLATION .

T2:  Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Sub Level Sensor>INSTALLATION .
