Engine Control Module (ECM): Removal

  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .

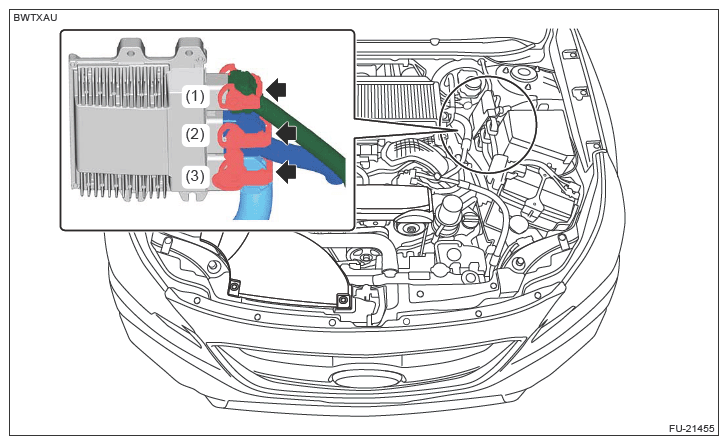

  2. Disconnect the connector in numerical order as shown in the figure.
    G13619529Courtesy of SUBARU OF AMERICA, INC.

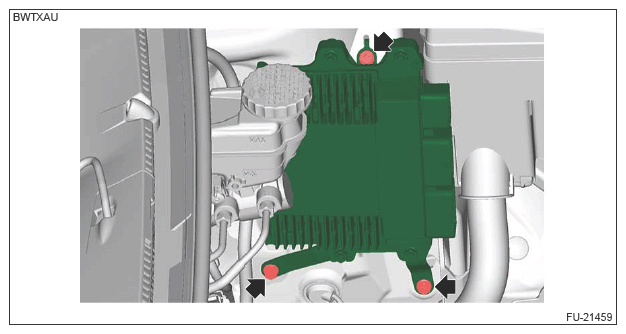

  3. Remove the ECM from vehicle.
    G13619694Courtesy of SUBARU OF AMERICA, INC.

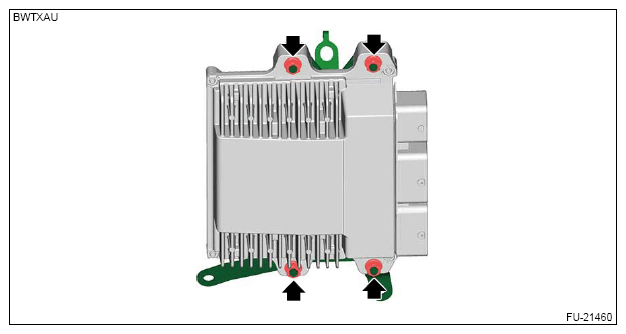

  4. Remove the ECM bracket.
    G13619695Courtesy of SUBARU OF AMERICA, INC.
