Auto Headlight Beam Leveler Control Module: Removal

CAUTION: Before handling the airbag system components, refer to AIRBAG SYSTEM>General Description>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Refer to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  3. Remove the knee airbag module. Refer to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL .
  4. Remove the duct foot driver. Refer to AIR CONDITIONER>Air Vent Duct>REMOVAL>FOOT DUCT .

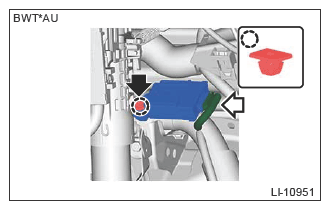

  5. Remove the auto headlight beam leveler Control Module.
    1. Remove the connectors and screws.
    2. Remove the clips, and remove the auto headlight beam leveler Control Module.
      G13622872Courtesy of SUBARU OF AMERICA, INC.
