SEAT VENTILATION Control Module

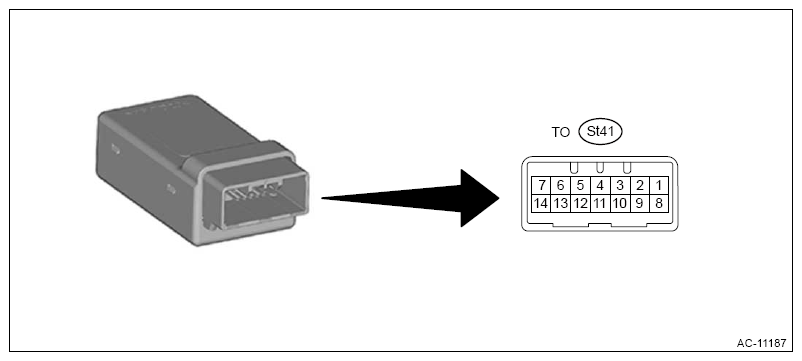

G13630737Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Contents Measuring condition Standard
(St41) No. 1 - - -
(St41) No. 2 (+) ←→ Chassis ground (-) Blower motor control signal (passenger's side) Digital signal; cannot be measured -
(St41) No. 3 - - -
(St41) No. 4 - - -
(St41) No. 5 (+) ←→ Chassis ground (-) Blower motor control signal (driver's side) Digital signal; cannot be measured -
(St41) No. 6 (+) ←→ Chassis ground (-) ACC power supply Ignition switch: ACC Battery voltage
(St41) No. 7 - - -
(St41) No. 8 - - -
(St41) No. 9 (+) ←→ Chassis ground (-) B-CAN L Cannot be measured -
(St41) No. 10 (+) ←→ Chassis ground (-) B-CAN H Cannot be measured -
(St41) No. 11 - - -
(St41) No. 12 - - -
(St41) No. 13 - - -
(St41) No. 14 (+) ←→ Chassis ground (-) GND Always Resistance 1 Ω or less
