Ignition Key Lock: Replacement
CAUTION:
- Before handling the airbag system components, refer to AIRBAG SYSTEM>General Description>CAUTION .
- Do not allow harness and connectors to interfere or get tangled up with other parts.
- If the steering wheel and steering angle sensor (steering roll connector) are removed, refer to VEHICLE DYNAMICS CONTROL (VDC)>VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the cover LWR driver. Refer to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
- Remove the knee airbag module. Refer to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL
- Remove the steering wheel assembly. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Wheel>REMOVAL
- Remove the column assembly steering. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Column>REMOVAL
- Remove the ignition key lock.
- Install the ignition key lock.

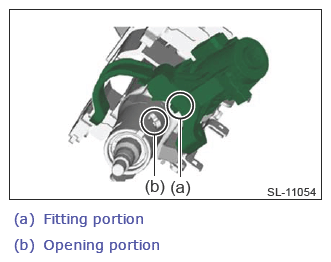

- Secure the ignition key lock to the column assembly steering.CAUTION: When installing the ignition key lock, confirm that the fitting portion of the ignition key lock is properly engaged with the opening portion of the column shaft.
- Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).
- Secure the ignition key lock to the column assembly steering.
- Install the column assembly steering. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Column>INSTALLATION .
- Install the steering wheel assembly. Refer to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Wheel>INSTALLATION .
- Install the knee airbag module. Refer to AIRBAG SYSTEM>Knee Airbag Module>INSTALLATION .
- Install the cover LWR driver. Refer to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>INSTALLATION .
- Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
