Outer Mirror

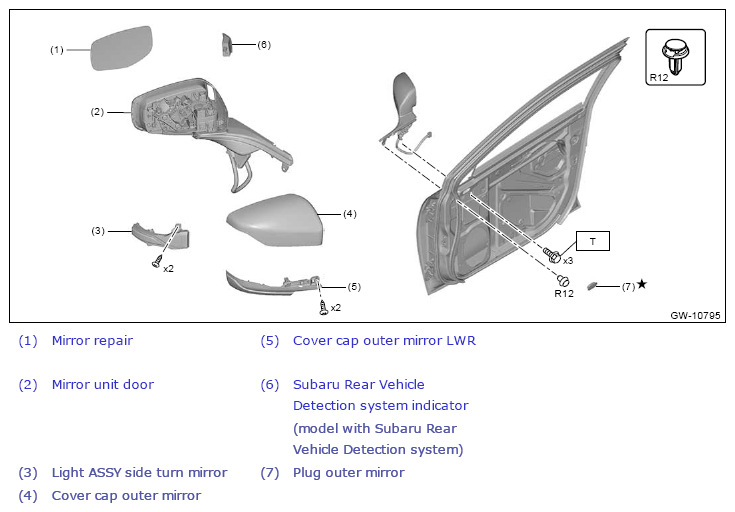

Fig 1: Outer Mirror Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

NOTE: For exploded view of the outer mirror Control Module, refer to EXTERIOR/INTERIOR TRIM>General Description>COMPONENT>DOOR TRIM .
