Fuel Delivery and Evaporation Lines: Installation: Notes

  1. Install the fuel sub delivery tube.
    1. Set the fuel sub delivery tube to the fuel tank.
      NOTE:

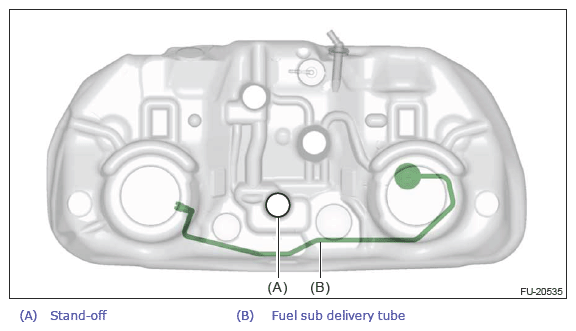

      • Route the fuel sub delivery tube in front of the stand-off as shown in the figure.
      • Check the fuel sub delivery tube to make sure it's not twisted.
      G13618648Courtesy of SUBARU OF AMERICA, INC.
    2. Install the fuel sub level sensor. Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Sub Level Sensor>INSTALLATION .
    3. Install the fuel pump assembly. Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Pump Assembly>INSTALLATION .

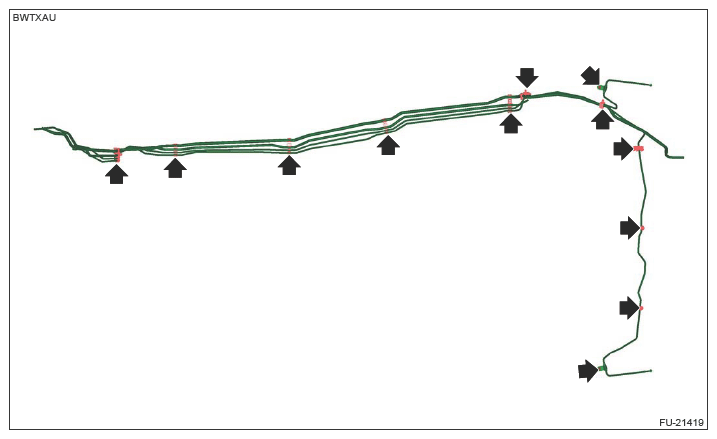

  2. Install the fuel pipe assembly.
    G13618635Courtesy of SUBARU OF AMERICA, INC.

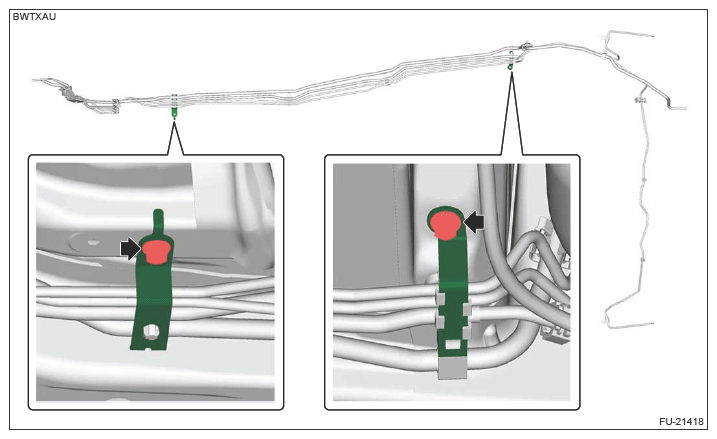

  3. Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket B and fuel pipe bracket C.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G13618634Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the brake pipe and brake hose.

    Brake pipe:

    Refer to BRAKE>Brake Pipe>INSTALLATION .

    Brake hose:

    Refer to BRAKE>Brake Hose>INSTALLATION .

  5. Install the under cover rear RH. Refer to EXTERIOR/INTERIOR TRIM>Floor Under Protector>INSTALLATION .

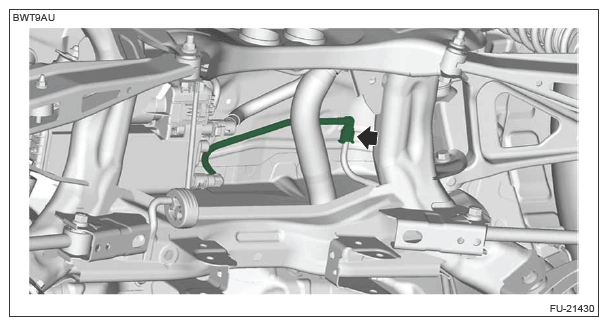

  6. Connect the purge tube to the fuel pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE E) .
    G13618633Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the fuel delivery tube to the fuel tank. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .
  8. Install the fuel tank. Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Tank>INSTALLATION .

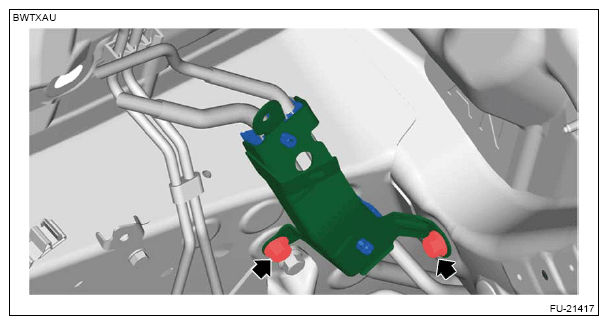

  9. Install the pipe clamp to the fuel pipe assembly, and then install the fuel pipe bracket A.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G13618632Courtesy of SUBARU OF AMERICA, INC.
  10. Lower the vehicle.

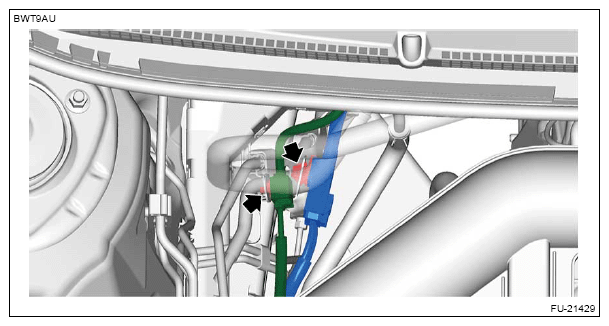

  11. Install the connector to the fuel pipe bracket A.
    G13618631Courtesy of SUBARU OF AMERICA, INC.

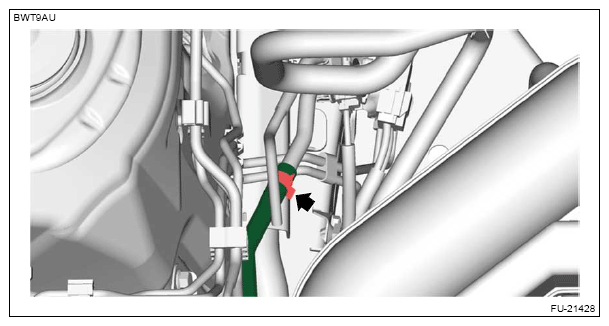

  12. Connect the evaporation hose to fuel pipe assembly.
    G13618630Courtesy of SUBARU OF AMERICA, INC.
  13. Connect the quick connector on the fuel delivery tube to the fuel pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE A) .
    G13618532Courtesy of SUBARU OF AMERICA, INC.
  14. Install the fuel delivery tube clamp to the fuel delivery tube.
    G13618531Courtesy of SUBARU OF AMERICA, INC.
  15. Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
