Fuel Filler Pipe: Assembly

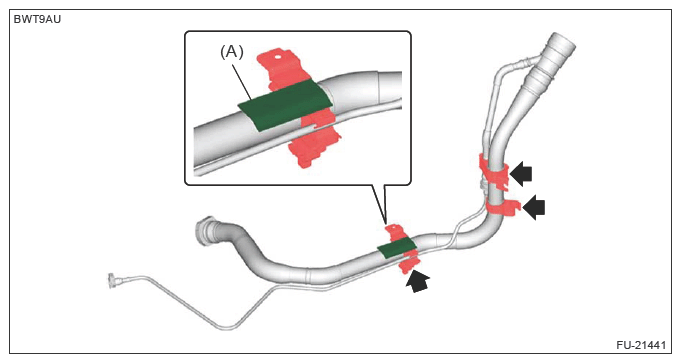

  1. Install the clamp to the filler tube.
  2. Install a new cushion (A).
    G13618560Courtesy of SUBARU OF AMERICA, INC.
  3. Install to the filler tube using a new drain filter and a new sub drain filter.
    G13618558Courtesy of SUBARU OF AMERICA, INC.

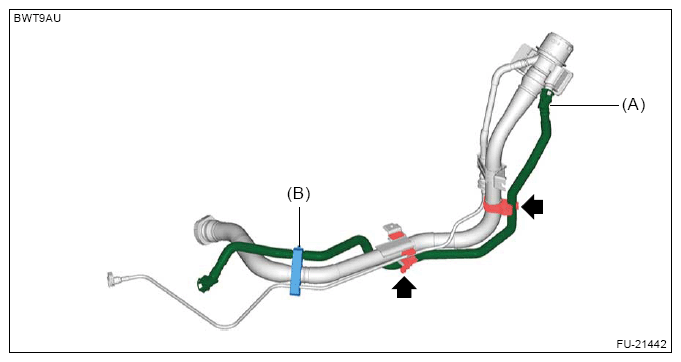

  4. Connect drain tube (A). Refer to Fuel Injection (Fuel Systems) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE G) .
  5. Install the drain tube (A) to the clamp.
  6. Install a new clamp (B).
    G13618562Courtesy of SUBARU OF AMERICA, INC.

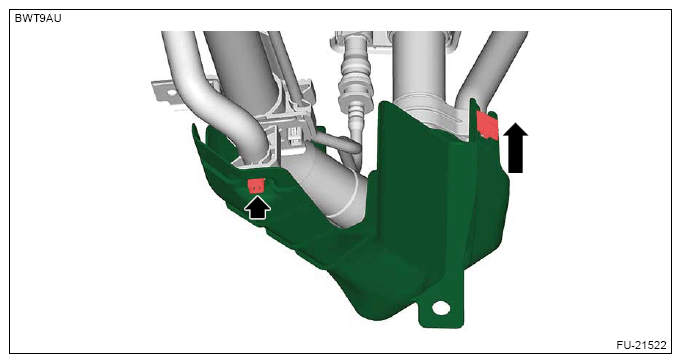

  7. Install the protector A.
    G13618563Courtesy of SUBARU OF AMERICA, INC.
