Fuel Filler Pipe: Disassembly

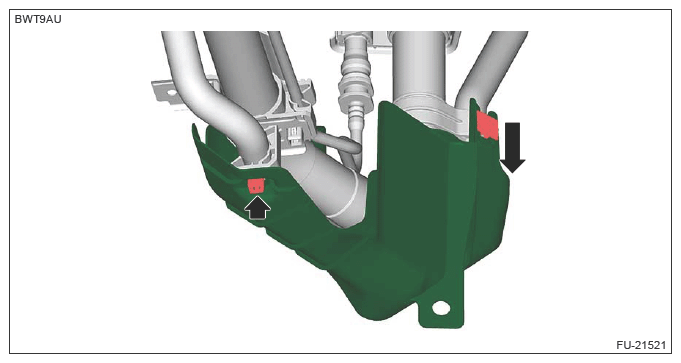

Remove the protector A.

Courtesy of SUBARU OF AMERICA, INC.

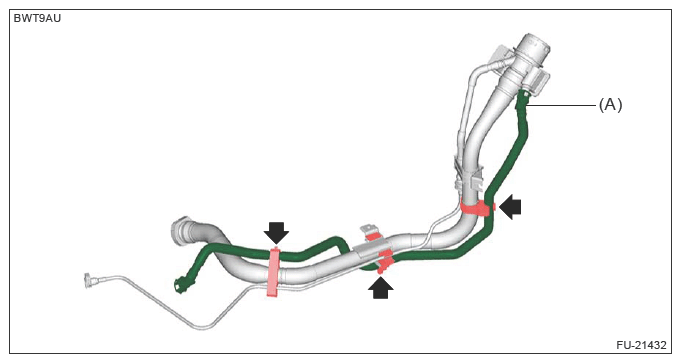

Disconnect the drain tube (A) from the drain filter. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE G) .
Remove the drain tube (A) from the clamp.

Courtesy of SUBARU OF AMERICA, INC.

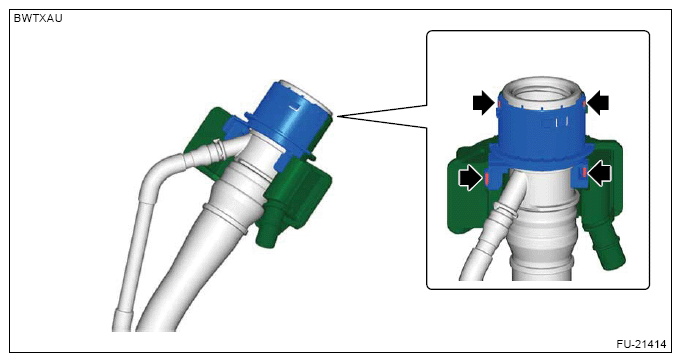

Remove the drain filter and the sub drain filter.

Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion (A) and the clamp.

Courtesy of SUBARU OF AMERICA, INC.
