Fuel Insulator: Removal

Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
Remove the clip from the air intake boot, and loosen the clamp.

Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot, and place it aside so that it does not interfere with the work.
CAUTION: Be careful not to pull out the PCV hose.

Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold assembly. Refer to Fuel Injection (Fuel Systems) (H4DO)>Intake Manifold Assembly>REMOVAL .
Disconnect the connector (A) from the outlet engine coolant temperature sensor.
Remove the bolts securing the engine wiring harness.

Courtesy of SUBARU OF AMERICA, INC.

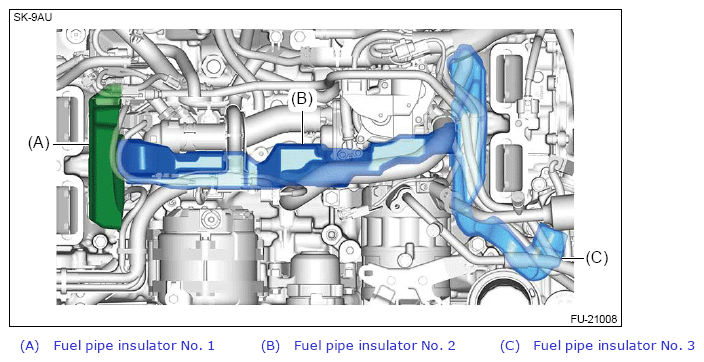

Remove the fuel pipe insulator.

Courtesy of SUBARU OF AMERICA, INC.
