Condition Check

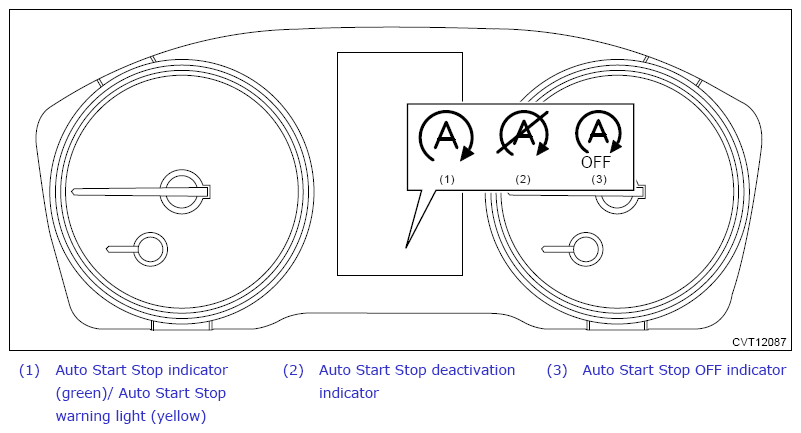

The illumination status of the Auto Start Stop indicator, Auto Start Stop warning light, Auto Start Stop OFF indicator and Auto Start Stop deactivation indicator is related to the vehicle status as follows.
| Vehicle condition | Ignition switch ON | When Auto Start Stop operation condition is not met | During Auto Start Stop | Auto Start Stop being canceled | Malfunction occurs during Auto Start Stop. |
|---|---|---|---|---|---|
| Auto Start Stop indicator status | Light OFF | Light OFF | ON (green) | Light OFF | Light OFF |
| Auto Start Stop warning light status | ON (yellow)*1 | Light OFF | Light OFF | ON (yellow)*2 | ON (yellow) |
| Auto Start Stop deactivation indicator status | Light OFF | Light ON | Light OFF | Light OFF | Light OFF |
| Auto Start Stop OFF indicator status | ON*1 | Light OFF | Light OFF | ON*3 | Light OFF |
*1: After engine is started, it goes off.
*2: The conditions become out of the Auto Start Stop criteria during Auto Start Stop, and the system cannot restart.
*3: Auto Start Stop is canceled by operating the Auto Start Stop cancel switch.
