Auto Start Stop System (Diagnostics): Electrical Component Location: Location

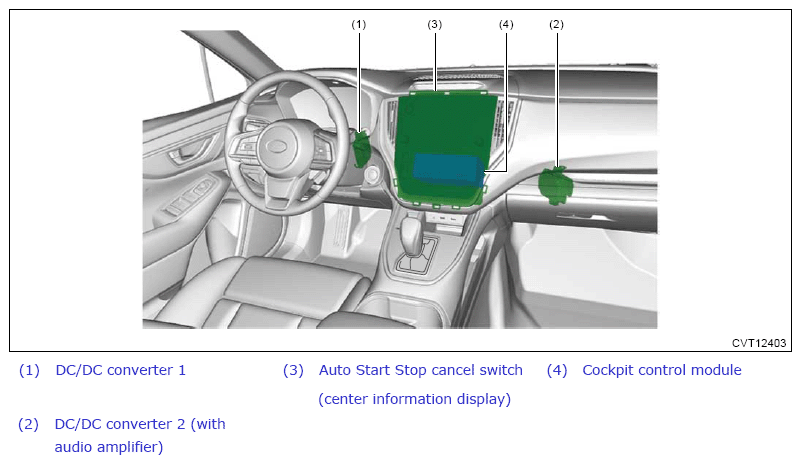

Courtesy of SUBARU OF AMERICA, INC.

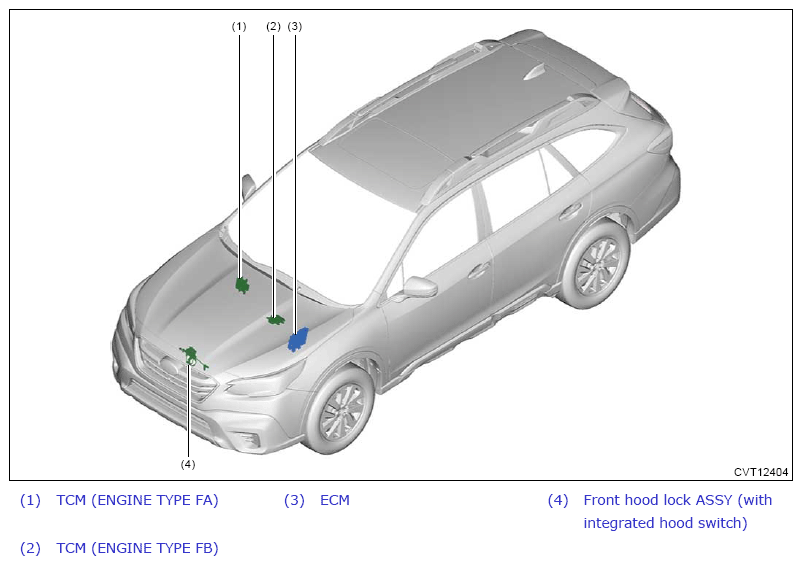

Courtesy of SUBARU OF AMERICA, INC.

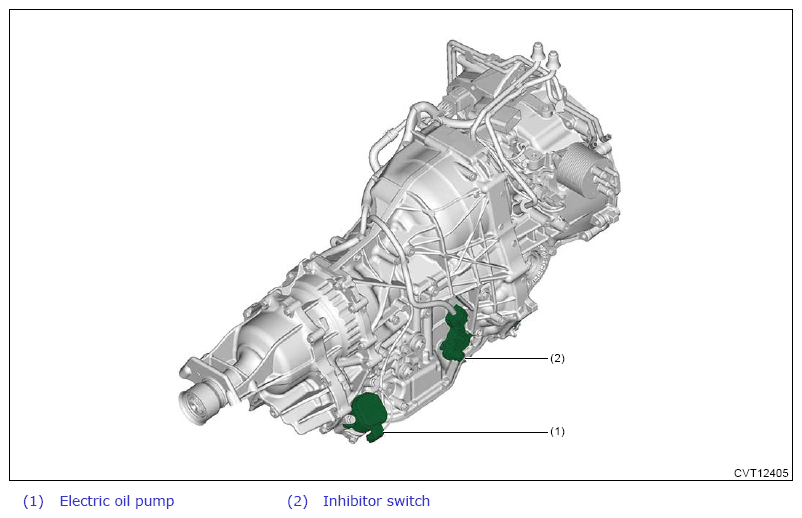

• ENGINE TYPE FB

  Courtesy of SUBARU OF AMERICA, INC.

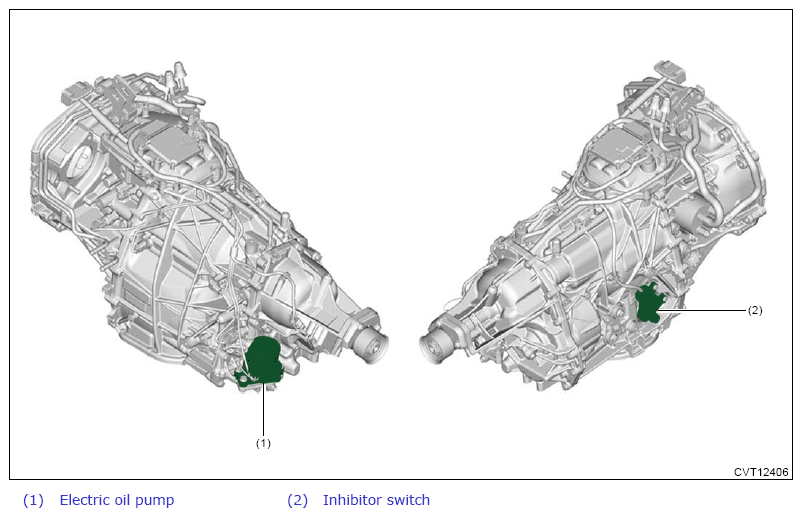

• ENGINE TYPE FA

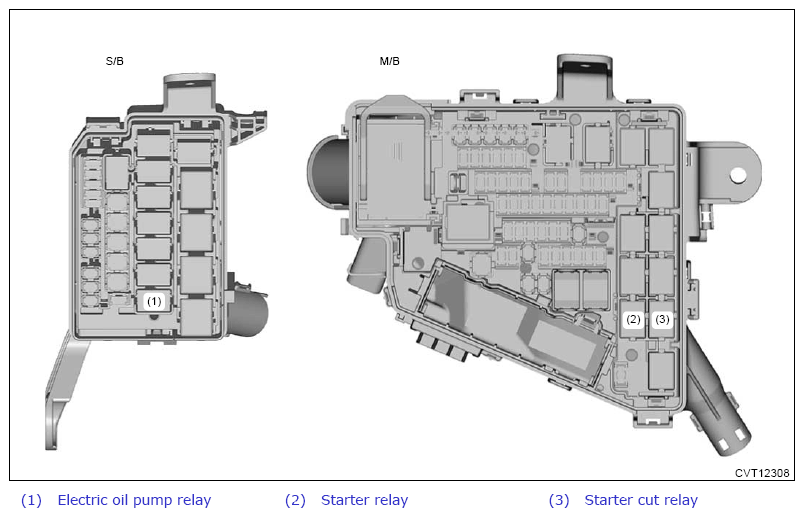

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
