Belt Assembly Front Inn

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Refer to AIRBAG SYSTEM>General Description>CAUTION .
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For model with the power seat, move the seat to the front-most position before removing the ground terminal from the battery sensor.
  3. Remove the front seats. Refer to SEATS>Front Seat>REMOVAL .
  4. Remove the belt assembly front INN.

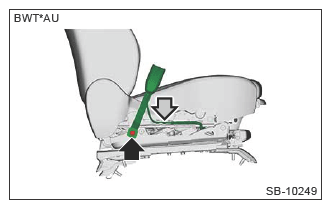

    1. Remove the clip for the seat belt harness located under the seat cushion.
    2. Remove the nut, and then remove the belt assembly front INN.
      NOTE: For details about harness routing behind the seat, refer to "SEATS" information. USH Refer to SEATS>FRONT SEAT>ASSEMBLY>CONNECTOR & HARNESS .
      G13622764Courtesy of SUBARU OF AMERICA, INC.
