Steering Heater Relay
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to Repair Contents>Note>Battery .
- Remove the cover LWR driver. Refer to Exterior/Interior Trim>Instrument Panel Lower Cover>Removal .
- Remove the knee airbag module. Refer to Airbag System>Knee Airbag Module>Removal .
- Remove the body integrated unit (fuse & relay box). Refer to Body Control/Communication System>Body Integrated Unit>Removal .

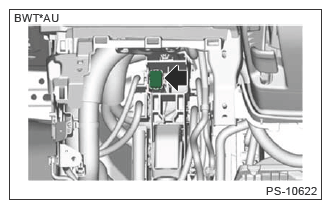

- Remove the steering heater relay.
