Steering Wheel: Removal

CAUTION: Before handling the airbag system components, always refer to Airbag System>General Description>Caution .

Set the tire to the straight-ahead position.
Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Refer to Repair Contents>Note>Battery .
Remove the driver's airbag module. Refer to Airbag System>Driver's Airbag Module>Removal .
Remove the steering wheel.
CAUTION:
- Always use the steering wheel puller for removal to avoid deforming the steering wheel.
- If the steering wheel has been removed, make sure that the steering roll connector is not turned from the original position.
Preparation tool:

Steering wheel puller

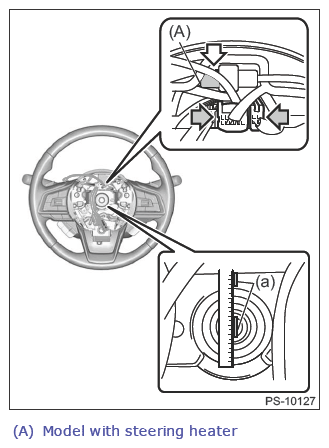

1. Disconnect the connector and remove the nut.
2. Put an alignment mark (a) using a ruler as shown in the figure, and remove the steering wheel.
